How Fire Alarm Control Panels Integrate with ELV and BMS Systems

Modern buildings are no longer isolated systems. Today’s offices, malls, hospitals, airports, factories and smart campuses rely on connected safety ecosystems where fire detection, surveillance, HVAC, lighting and access control work together.

At the centre of this ecosystem sits one critical device: the Fire Alarm Control Panel (FACP).

Think of it as the brain of the entire life-safety network.

When properly integrated with ELV (Extra Low Voltage) systems and BMS (Building Management Systems), the fire alarm panel does far more than trigger sirens. It can:

Control HVAC shutdowns
Unlock emergency exits
Start smoke extraction
Activate PA/voice evacuation
Notify security and CCTV
Inform facility managers in real time
Reduce response time drastically

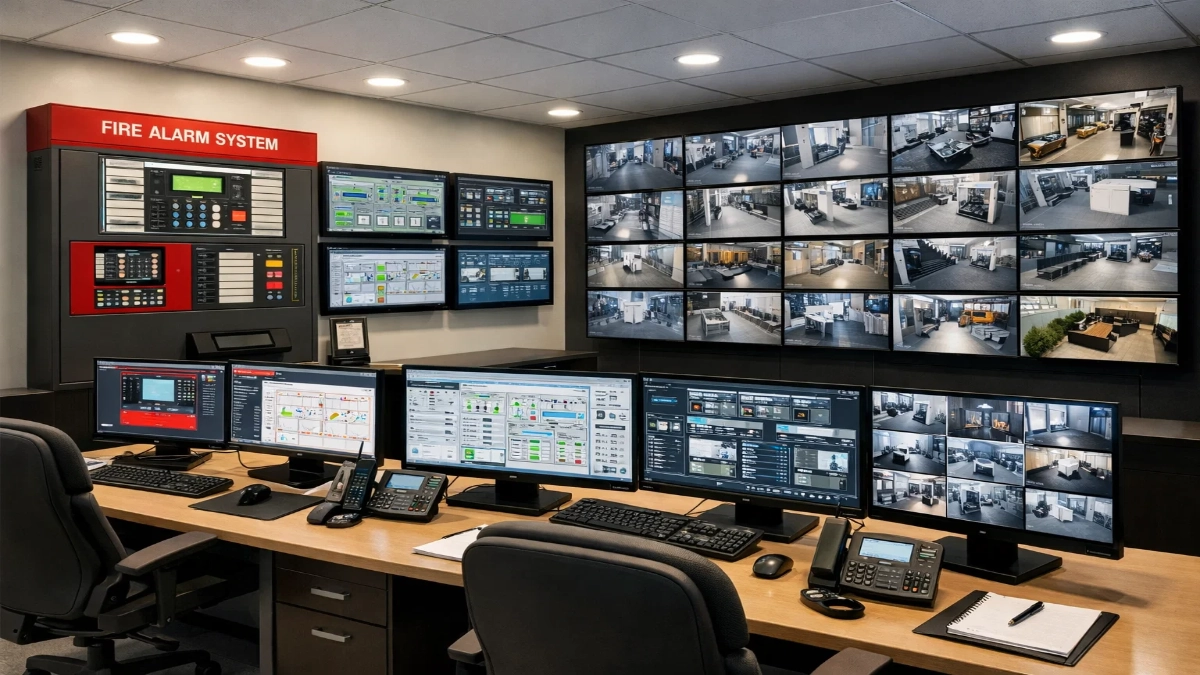

How Fire Alarm Control Panels Integrate with ELV and BMS Systems — Integrated fire alarm control panel connected to ELV and BMS systems for centralised safety management.

In this guide, you’ll learn:

How Fire Alarm Panels integrate with ELV & BMS
Why integration improves safety and compliance
Technical architecture explained simply
Practical use cases
Best practices for engineers & facility managers
Why GST systems are ideal for integrated buildings

Let’s break it down clearly and practically.

What Is a Fire Alarm Control Panel?

A Fire Alarm Control Panel (FACP) monitors devices such as:

Addressable detectors
Conventional detectors
Manual call points
Sounders & strobes
Modules and relays

It receives signals, analyses events and executes programmed responses.

Without integration, it only sounds an alarm.

With integration, it becomes a command centre.

Why Integration Matters in Modern Buildings

Today’s buildings must comply with:

Local fire authority codes
Insurance standards
Smart building expectations
Faster evacuation demands
Centralised monitoring requirements

Standalone systems create problems:

Delayed response
Manual coordination
Higher risk
Poor visibility
More manpower

Integrated systems solve these instantly:

Automated actions
Instant alerts
Central dashboard
Faster evacuation
Lower risk

This is exactly where GST fire alarm system solutions shine.

How Fire Alarm Panels Connect with ELV Systems

What is ELV?

ELV systems include:

CCTV
Access Control
Public Address (PAVA)
Intercom
Intrusion systems
Structured cabling

These systems operate below 50V but carry critical safety data.

Integration Architecture (Simple View)

Typical flow:

Detector → Fire Panel → Relay/Protocol → ELV System → Action

Example:

Smoke detected → Panel triggers → CCTV auto-records → Doors unlock → Voice alarm plays

Key Integration Points with ELV

1. CCTV System

When fire occurs:

Cameras auto-focus on the zone
Recording starts immediately
Operators see live footage

Benefit: Faster verification, reduced false alarms

2. Access Control

During an emergency:

Exit doors unlock
Magnetic locks release
Turnstiles open

Benefit: Safe evacuation

3. PAVA / Voice Evacuation

Panel triggers:

Pre-recorded messages
Zone-based announcements
Evacuation guidance

Benefit: Controlled crowd movement

4. Elevators (Lift Control)

Panel commands:

Send lifts to the ground floor
Disable passenger use
Enable fireman mode

Benefit: Prevents people from getting trapped

5. SMS / Remote Alerts

Integration allows:

SMS/email alerts
App notifications
Central monitoring

Benefit: Immediate action even off-site

How Fire Alarm Panels Integrate with BMS

What is BMS?

A Building Management System controls:

HVAC
Lighting
Power
Energy systems
Water pumps
Ventilation
Smoke control

BMS manages comfort.
Fire alarm manages life safety.

When combined, they become intelligent automation.

Integration Methods

Modern panels like GST support:

BACnet
Modbus
TCP/IP
Dry contacts
API integration

These protocols allow two-way communication.

Real-Time BMS Actions During Fire

HVAC Shutdown

Stops air circulation to prevent the spread.

Smoke Extraction

Starts exhaust fans automatically.

Pressurization Fans

Keeps staircases smoke-free.

Emergency Lighting

Turns on escape lighting instantly.

Generator Start

Ensures backup power.

All of this happens automatically within seconds.

Step-by-Step Integration Workflow

Here’s how a real system works:

Step 1 – Detection

Addressable detectors detect smoke/heat precisely.

Step 2 – Panel Processing

Panel identifies:

Exact location
Device type
Severity

Step 3 – ELV Commands

CCTV recording
Access unlock
PAVA announcements

Step 4 – BMS Commands

HVAC shutdown
Fans start
Lighting changes

Step 5 – Operator Monitoring

Everything is visible on a single dashboard.

This automation can save minutes, which saves lives.

Addressable vs Conventional Panels in Integration

🔹 Addressable fire alarm panel

Best for integration because:

Device-level identification
Faster response
Detailed data
Easy protocol communication

Perfect for:

Airports
Hospitals
High-rises
Smart buildings

🔹 Conventional fire alarm panel

Suitable for:

Small buildings
Limited integration needs
Budget projects

Less precise but still reliable.

For large integrated buildings, addressable is strongly recommended.

Why Engineers Prefer GST Systems for Integration

When planning integration, system capability matters.

GST fire alarm system Advantages

1. Native BMS Protocols

Supports BACnet/Modbus without extra gateways.

2. High Loop Capacity

Handles thousands of devices easily.

3. Smart Networking

Panels communicate across large campuses.

4. Easy ELV Interfacing

Built-in relays and modules simplify wiring.

5. Reliable Hardware

Designed for harsh environments.

6. Cost-Effective

Enterprise features without premium pricing.

This makes GST ideal for:

Commercial towers
Hotels
Warehouses
Government buildings
Industrial sites

Real-World Integration Examples

Shopping Mall

Smoke → HVAC stops
PAVA directs exits
CCTV records
Escalators stop

Hospital

Alarm → isolate zone
Nurse station alerts
Pressurized corridors
Controlled evacuation

Factory

Fire → machines shut down
Gas valves close
Exhaust fans start

Integration protects both people and assets.

Installation Best Practices

Engineers should follow:

✔ Use addressable architecture

Provides precise control.

✔ Plan I/O points early

Map all relay and protocol requirements.

✔ Test every interface

Don’t assume automation works.

✔ Separate safety network

Avoid overload or delays.

✔ Use certified equipment

Ensures authority approval.

✔ Provide redundancy

Critical for large sites.

Final Thoughts

Fire safety today is not just detection.

It is intelligent coordination.

When your Fire Alarm Control Panel integrates with ELV and BMS:

Response becomes automatic
Risk reduces drastically
Compliance improves
Operations become smarter
Lives are protected faster

For engineers and facility managers, integration is no longer optional. It is the new standard.

And with GST fire alarm systems, achieving this level of intelligence becomes simple, scalable and reliable.

If you’re planning your next project, design your fire alarm panel not just as a detector… but as the central brain of your entire building.
