When we design fire safety systems, we often focus heavily on detection technology, panel architecture, suppression logic and network communication. But in real-world incidents, the most common root cause of total system failure is not detection technology; it is loss of power.
Every fire safety system is electrically dependent. If power fails:
- Detection stops.
- Control logic shuts down.
- Alarm signals never activate.
- Pumps do not start.
- Smoke extraction stalls.
- Voice evacuation systems go silent.
In a real emergency, even a few seconds of power interruption can reset a fire alarm control panel, corrupt event logs or delay suppression activation.
We have seen this in:
- Industrial plants where grid failure occurred during lightning storms.
- High-rise buildings where fire alarm panels rebooted mid-alarm event.
- Hospitals where dead standby batteries were discovered during inspection.
- Warehouses where the fire pumps could not start because the generator ATS failed.
When we design systems like the GST Addressable Fire Alarm System under the broader fire detection system category, we are not merely meeting specifications; we are designing life safety infrastructure. Power backup is not a checkbox item. It is a reliability engineering decision.

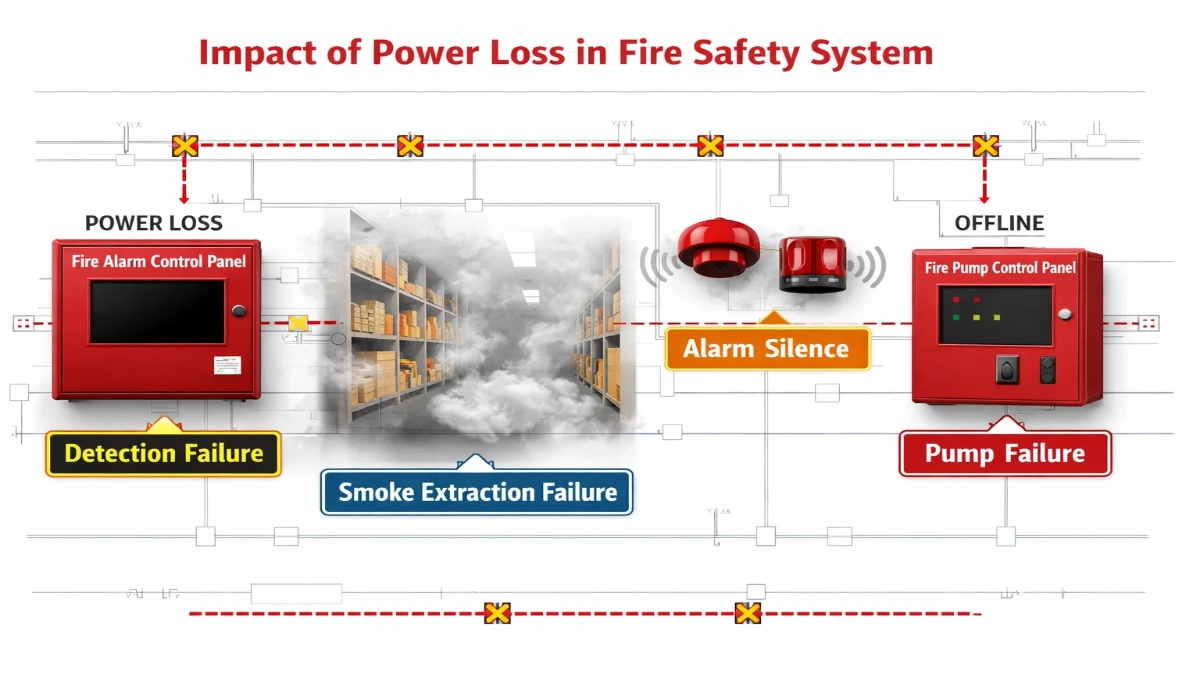

Consequences of Power Loss During Fire
Let us analyse the technical impact:
| Failure Type | Technical Impact | Consequence |
|---|---|---|
| Detection failure | Loop communication stops | No fire identification |
| Suppression failure | Release panel shuts down | Gas discharge blocked |
| Alarm silence | NAC circuits de-energised | Occupants not alerted |
| Pump failure | Motor control panel offline | Water supply compromised |
| Code violation | System non-compliant | Legal & insurance exposure |
In environments like:
- Industrial manufacturing plants
- Data centres
- Airports
- Hospitals
- High-rise commercial buildings
Power backup must be engineered with the same rigour as detection logic.
Backup power design is not just about compliance. It is life safety engineering.

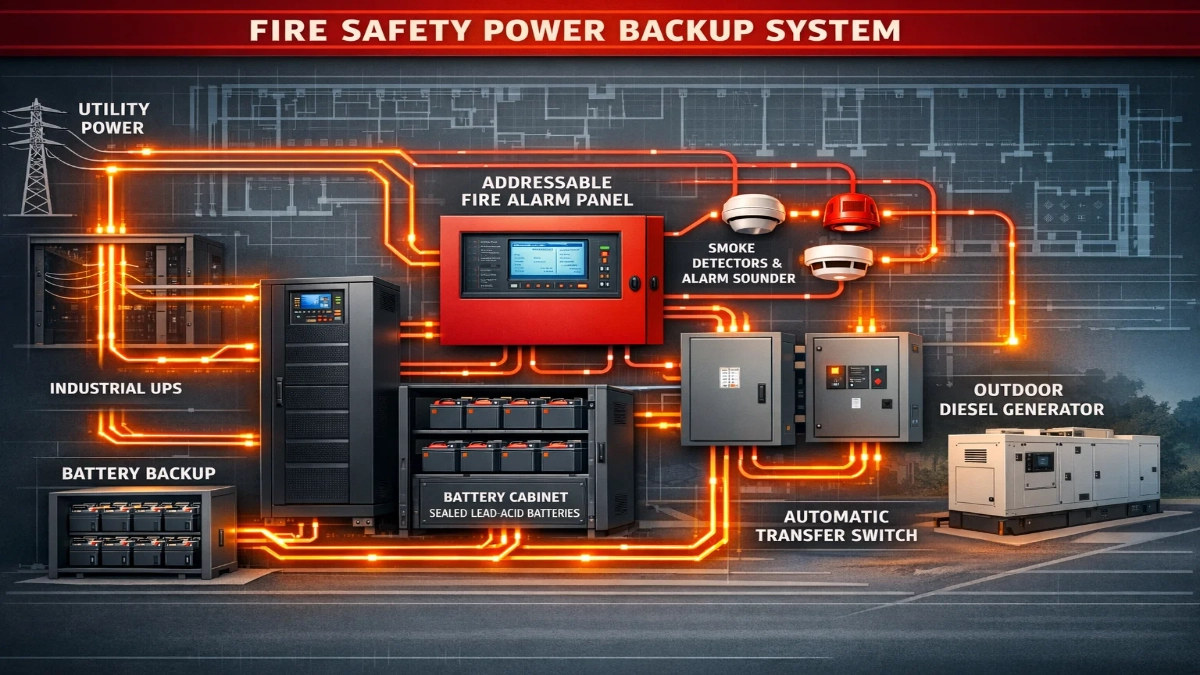

2. What Is a Power Backup System in Fire Safety?
Before choosing a solution, we must clearly define terms.
Primary Power
Primary power is the normal utility supply, typically 230V/415V AC from the grid.
Secondary Power
Secondary power is the standby source that activates when the primary supply fails.
Standby Power
Standby power maintains system readiness under normal (non-alarm) conditions.
Alarm Power
Alarm power supports the system during active fire conditions when the current draw significantly increases.
Backup vs Redundancy vs Emergency Supply
These terms are often misused:
| Term | Meaning |
|---|---|
| Duplicate systems to eliminate single-point failure | Alternate power source during outage |
| Redundancy | Duplicate systems to eliminate single-point failure |
| Emergency supply | Dedicated supply for life safety circuits |
Core Components
A properly designed backup system integrates:
- Battery charger module
- Sealed lead-acid or lithium batteries
- UPS module (if required)
- Generator interface
- Automatic Transfer Switch (ATS)
- Monitoring circuitry
All integrate with systems like:
- Addressable fire alarm control panel
- Fire alarm control panel category systems
- Suppression release panels
3. Fire Safety Systems That Depend on Power Backup
Let us examine system-level dependencies.
Fire Alarm Control Panels
Panels like the GST Addressable Fire Alarm System rely on:
- Continuous loop polling
- Device addressing
- Event logging
- Network communication
If power drops, loop devices disconnect instantly.
Detection Loops
Devices such as Addressable fire alarm detectors draw continuous standby current. Power instability can:
- Cause communication loss
- Generate false faults
- Reset devices
Notification Devices
Sounders, strobes and voice evacuation systems increase current 3–5x during alarm.
If batteries are undersized, NAC voltage collapses.
Fire Pumps
Under NFPA 20, fire pumps require a reliable emergency supply.
Failure example:
A warehouse pump failed during a fire because the generator ATS did not transfer the load properly.
Smoke Exhaust Systems
Fans require a generator-backed supply. Without smoke extraction, evacuation time increases.
4. Regulatory and Code Requirements for Power Backup
Compliance is mandatory.
Key standards include:
- National Fire Protection Association (NFPA 72 & NFPA 20)
- Fire Protection Association
- IFSEC Global
- Fire Engineering
- EN 54
- IS 2189
24-Hour Standby + Alarm Duration
Typical requirement:
- 24 hours standby
- 5, 15, or 30-minute alarm (depending on system)
Battery replacement cycles typically occur every 3–5 years.
Testing frequency:
- Monthly visual
- Annual load testing
5. Types of Power Backup Systems Used in Fire Safety
5.1 Battery-Based Backup Systems
Most fire alarm panels include internal sealed lead-acid batteries.
Types:
- Flooded lead-acid
- SMF (Sealed Maintenance Free)
- Lithium (emerging use)
Failure Modes:
- Sulfation
- Thermal runaway
- Charger failure
- Corrosion
Battery sizing is critical.
5.2 UPS Systems
Used in:
- Voice evacuation systems
- Critical repeater panels
- Network gateways
Online UPS provides zero transfer delay.
Limitation:
UPS supports short duration unless connected to extended battery banks.
5.3 Generator-Based Backup
Diesel generators support:
- Fire pumps
- Smoke management
- Large facilities
Key components:
- Automatic Transfer Switch (ATS)
- Load prioritisation panel
- Fuel storage
Failure cases:
- ATS malfunction
- Fuel contamination
- Improper load sequencing
6. Key Factors to Consider When Choosing a Power Backup System

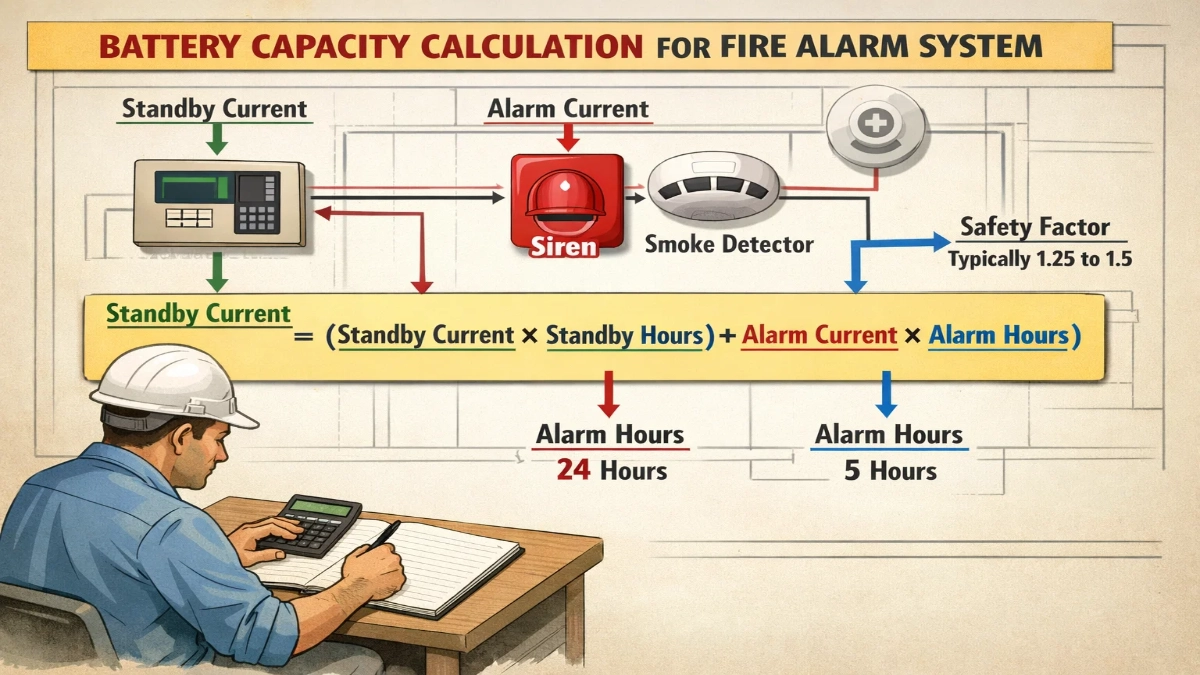

6.1 Load Calculation and System Capacity
We must calculate:
- Total standby current
- Total alarm current
- Battery AH requirement
- Generator kVA rating
Example:
Standby current = 2.5A
Alarm current = 8A
Standby duration = 24h
Alarm duration = 0.5h
Battery AH =
(2.5 × 24 + 8 × 0.5) × 1.25 safety factor
= (60 + 4) × 1.25
= 80 AH approx.
Refer to systems under the fire detection system category for accurate load sheets.
6.2 Required Standby and Alarm Duration
Industrial facilities often require greater autonomy due to delayed emergency response times.
High-risk occupancy:
- Chemical plants
- Data centers
- Hospitals
Require enhanced autonomy beyond minimum code.
6.3 Redundancy and Reliability
We must consider:
- N+1 battery configuration
- Dual chargers
- Parallel generators
- Fault monitoring relays
Reliability engineering eliminates single points of failure.
6.4 Environmental and Installation Conditions
Temperature affects battery life drastically.
For every 10°C increase above 25°C:
Battery life reduces by ~50%.
We must consider:
- Ventilation
- Humidity
- Seismic mounting
- IP-rated enclosures
6.5 Battery Sizing and Capacity Calculation
Formula:
Battery AH =
(Standby current × standby hours + Alarm current × alarm hours) × Safety Factor
Include ageing factor 1.25–1.3
Temperature derating as required.
Integrated into systems like Addressable fire alarm control panel installations.
7. Common Power Backup Selection Mistakes Consultants Should Avoid
From field audits, we repeatedly see:
- Undersized batteries
- Ignoring temperature derating
- No alarm-condition load testing
- Generator overload
- No maintenance documentation
- No ATS functional testing
Consequences
- System shutdown during a fire
- Code violation penalties
- Insurance claim rejection
- Legal liability for consultants
Backup power must be engineered, documented and tested.
Note: Choosing the right power backup system is not about installing batteries or connecting a generator. It requires:
- Load engineering
- Code compliance
- Reliability analysis
- Environmental evaluation
- Maintenance planning
When we design systems like a GST addressable fire alarm system, integrate addressable fire alarm detectors and deploy panels from the fire alarm control panel category, we must treat backup power as a core life safety subsystem.
In fire safety engineering, power reliability equals life reliability.
