Detect the Flame Before the Smoke – Smart UV Sensing for Safer Spaces.

Early Flame Detection. Maximum Protection. The GST C-9104 UV Flame Detector provides quick and precise flame recognition with ultraviolet technology. It is perfect for high-risk industrial areas where every second counts.

GST C-9104 UV Flame Detector – High-Sensitivity Conventional Flame Detection for Fast Fire Response

Advanced UV Sensing Technology: Uses a precise ultraviolet sensor to instantly detect UV radiation from open flames. This ensures early fire detection before smoke appears.
Sleek, Low-Profile Aesthetic: Designed with a compact and modern shape that fits well in any environment while maintaining its functionality.
Built for Harsh Environments: Made to withstand dust, moisture, and corrosive agents. This is perfect for industrial settings where reliability is essential.

Product Description:

The GST C-9104 Conventional Ultraviolet (UV) Flame Detector is a reliable device that provides early detection of flames in high-risk industrial settings. It uses a sensitive UV sensor to detect ultraviolet radiation from open flames quickly. This allows for a fast response, even before visible smoke appears. This early warning feature is crucial for any fire safety system, particularly in areas with a high risk of sudden ignition.

The GST C-9104 UV Flame Detector is designed to perform consistently in tough and hazardous conditions. It has strong immunity against false alarms triggered by natural and manmade UV sources like direct sunlight, lightning, and arc welding. This means safety systems react only to real fire threats, reducing unnecessary downtime and improving efficiency.

The detector’s strong construction makes it durable against dust, humidity, and corrosion. This durability makes it suitable for critical areas such as fuel storage facilities, chemical plants, aircraft hangars, power stations, and engine compartments. Its design is made to handle harsh environments without losing sensitivity or accuracy.

In addition to being reliable, the C-9104 detector is easy to integrate. Its compact size allows for flexible installation, and its quick response time supports faster evacuation and fire suppression. The detector is fully compatible with conventional fire alarm systems, allowing for seamless upgrades and system expansions without complex changes.

By combining effective detection technology, tough design, and user-friendliness, the GST C-9104 UV Flame Detector offers a dependable solution for organisations looking to improve their fire safety measures. It helps protect valuable assets and human lives by providing quick and accurate flame detection in demanding industrial applications.

Tech Specs & Resources

Operating Voltage	24VDC
Operating Current	Standby Current≤1.6mA Alarm Current: 38mA
Operating Environment	Temperature: -20℃ ～+50℃ Relative Humidity: 95%, non condensing
Detection Angle	80°
Dimensions	Diameter 103mm, Height 53.5mm

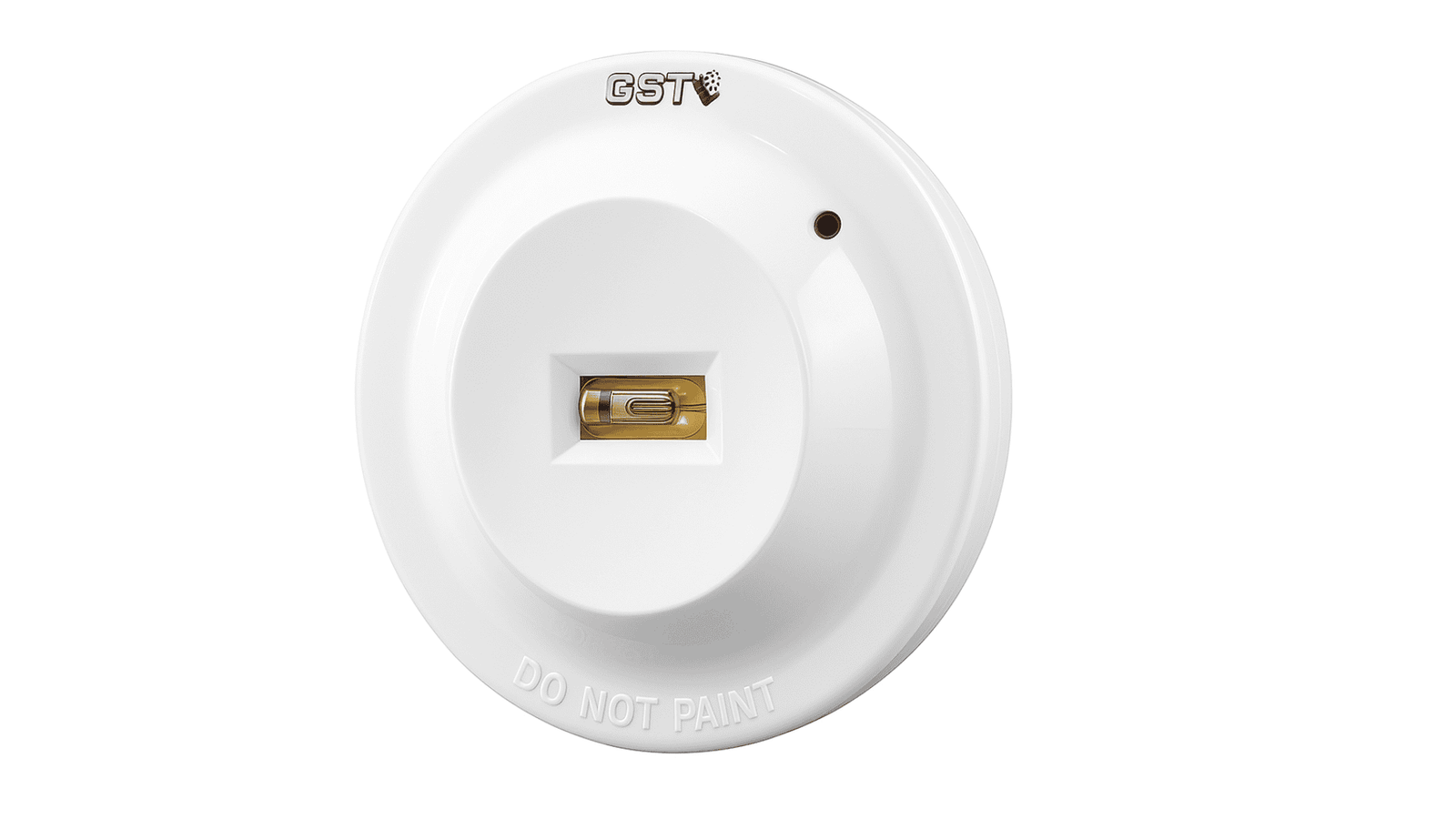

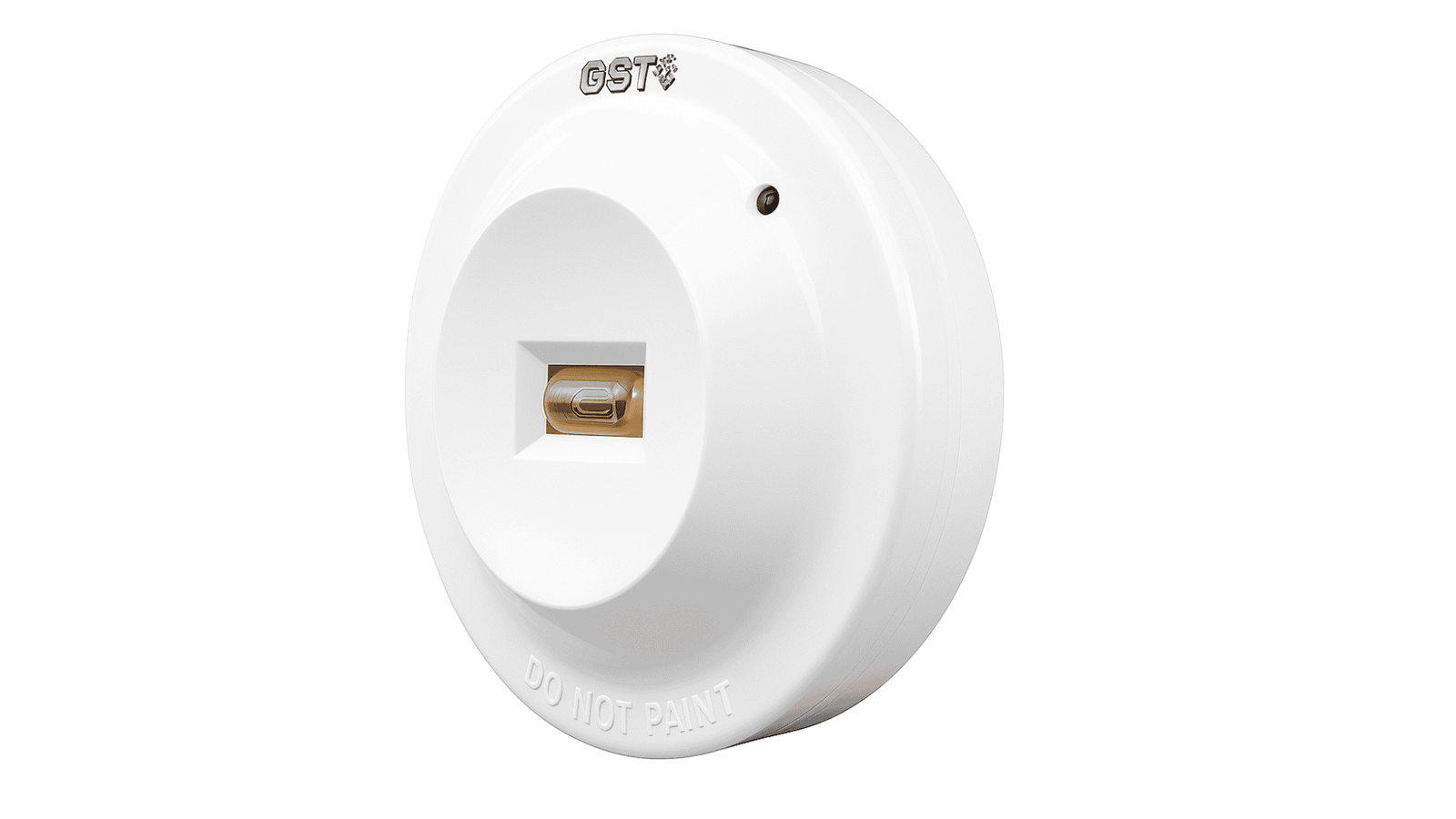

GST C-9104 Conventional Ultraviolet Flame Detector

Ultraviolet Sensor that detects the UV rays emitted by a flame, Aesthetically pleasing low profile design, Dust-proof, damp-proof and corrosion-proof.

GST C-9104 UV Flame Detector Datasheet Download

Benefits & Usage of GST C-9104 UV Flame Detector

Fast flame detection using high-sensitivity ultraviolet (UV) sensing technology.
This technology is ideal for flame-prone areas like chemical zones, fuel locations, and turbine halls.
It works with traditional systems for easy integration into existing fire systems.
It reduces false alarms with excellent UV discrimination from non-fire sources.
It is built to withstand harsh conditions such as dust, moisture, and corrosive elements.
The design is compact and low-profile, making it suitable for tight or hidden spaces.
Installation and maintenance are quick, thanks to a user-friendly setup.
It provides reliable fire response even in low-visibility or high-heat situations.
