See Smoke Sooner, Stay Safer Longer.

Protect your premises with the GST DC-9102E Conventional Photoelectric Smoke Detector, a high-performance photoelectric smoke detector. It features magnetic testing, 360° LED visibility, and LPCB-certified reliability. It is built for early warning and designed for safety.

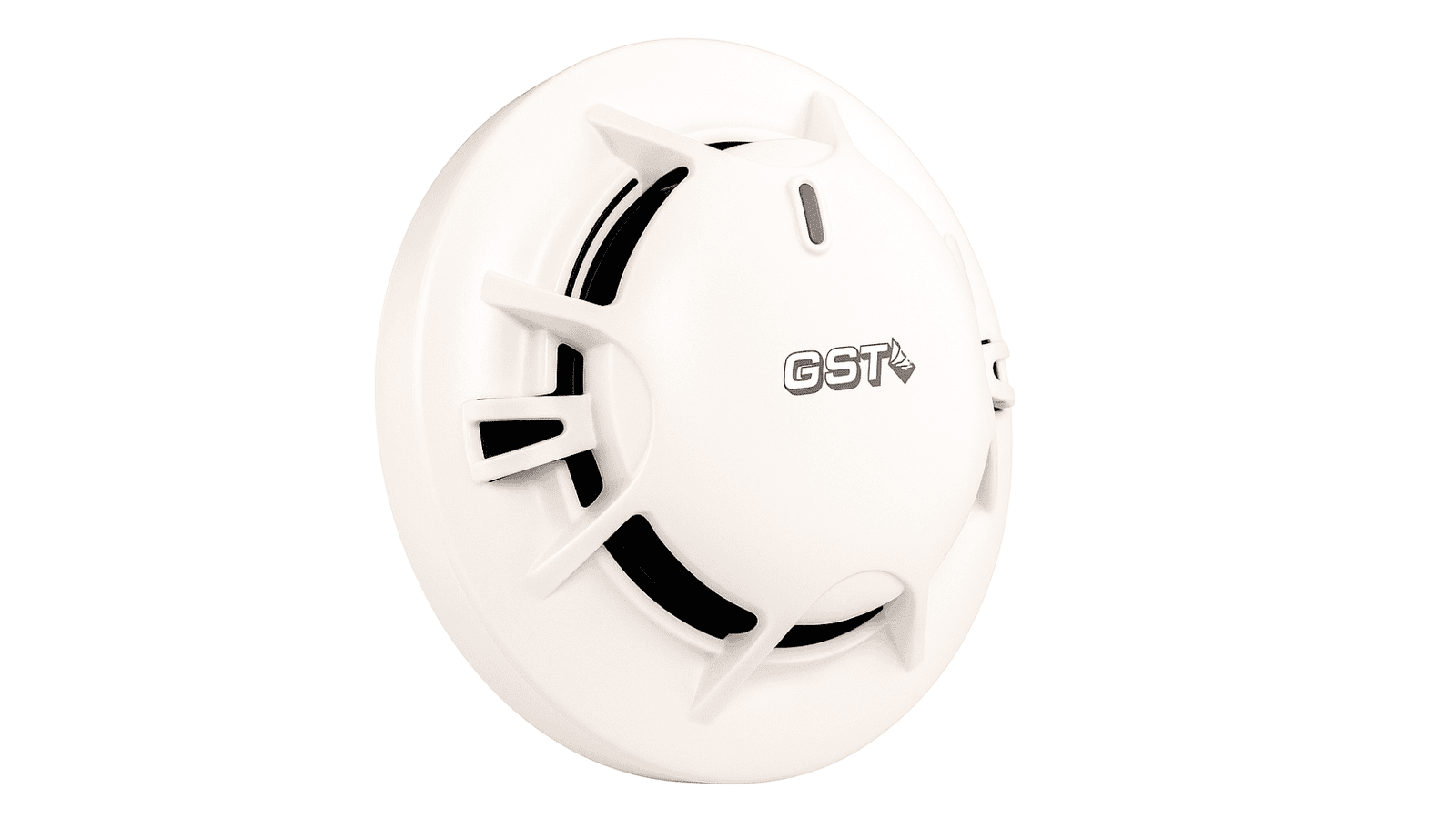

GST DC-9102E Conventional Photoelectric Smoke Detector – Reliable Smoke Detection with 360° Visibility

  • 360° LED Visibility: Provides full-angle visual confirmation of alarm status for improved safety awareness.
  • Magnetic Test Capability: Allows convenient and contactless testing, which is ideal for routine maintenance without disruption.
  • Remote Indicator Output Ready: Works well with external indicators for monitoring status off-site.
  • Removable Innovative Sensing Chamber: Makes cleaning and maintenance easier while ensuring long-term detection performance.
  • Dual Sensitivity Levels: Offers customizable smoke detection for different room sizes or fire risks.
  • LPCB Certified: Tested and approved to meet the highest international fire safety standards.

Product Description:

The GST DC-9102E Conventional Photoelectric Smoke Detector is built to provide reliable early smoke detection in commercial, industrial, and public spaces. This device offers timely alerts that help keep people, property, and essential infrastructure safe.

A key feature is the removable sensing chamber, which makes maintenance and cleaning simple without the need for a full replacement. This design improves performance and cuts long-term maintenance costs. The detector has a 360° LED indicator for maximum visibility from any angle, enabling users to quickly check its operational status.

The GST DC-9102E also has dual-level sensitivity settings, allowing it to adjust to various risk areas. In high-risk industrial settings, users can increase sensitivity. In office or public spaces, a balanced setting provides accurate detection while minimising false alarms. The magnetic test feature adds convenience, allowing maintenance teams to check functionality easily.

Certified by LPCB (Loss Prevention Certification Board), this smoke detector meets international safety and performance standards, ensuring compliance for projects that require global certification. Whether used alone or as part of a larger fire protection system, it offers consistent reliability.

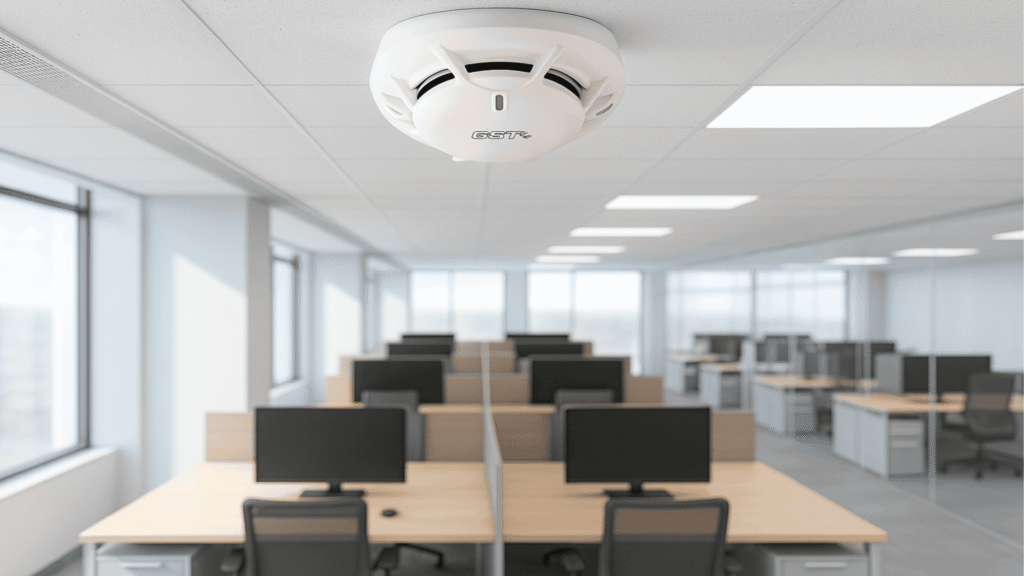

The GST DC-9102E is perfect for factories, offices, warehouses, shopping centres, and public buildings, providing quick and reliable responses at the first signs of smoke. Its technology ensures emergency teams have the time needed to respond, reducing risks and potential damage.

With its blend of innovation, compliance, and practicality, the GST DC-9102E Conventional Photoelectric Smoke Detector is a dependable choice for modern fire safety needs, protecting lives, property, and operations 24/7.

Tech Specs & Resources

  • Early Fire Detection: Swift and accurate response to smoke presence helps minimise fire risk at the earliest stage.

  • All-Angle Visual Awareness: 360° LED indicator provides immediate, full-view alarm visibility for faster human response.

Standard EN54-7
Operating Voltage 24VDC
Operating Current: Standby Current≤ 0.06mA

Alarm Current≤ 55mA

Operating Environment: Temperature: -10℃ ~+50℃
Relative Humidity: 95%, non-condensing
Dimensions Diameter 100mm; Height 54.5mm



DC-9102E Conventional Photoelectric Smoke Detector 360° LED Visibility, Magnetic Test Capability, Remote Indicator Output Ready, Removable Innovative Sensing Chamber
GST DC-9102E Conventional Photoelectric Smoke Detector Datasheet Download

Benefits & Usage of GST DC-9102E Conventional Photoelectric Smoke Detector

  • Simplified Maintenance: The removable sensing chamber and magnetic test allow for quick and easy cleaning and testing.
  • Flexible Sensitivity Settings: Two programmable sensitivity levels provide optimal detection based on room use or fire load.
  • Remote Monitoring Ready: It works with external remote indicators for easy integration into centralised alarm systems.
  • Long-Term Reliability: Designed for tough environments with durable components and LPCB certification to ensure compliance.Quick Testing Without Disassembly: The magnetic test function cuts down maintenance time and supports safe testing protocols.

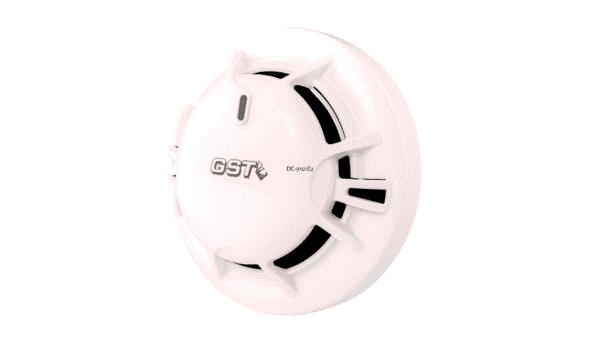

GST convetional fire detector DC-9101E2
