Precision Detection. Extended Protection.

Improve your fire safety system with the GST DC-9105E Conventional Reflective Beam Smoke Detector. This device is made for large spaces. It offers smart processing, simple alignment, and LPCB-certified performance.

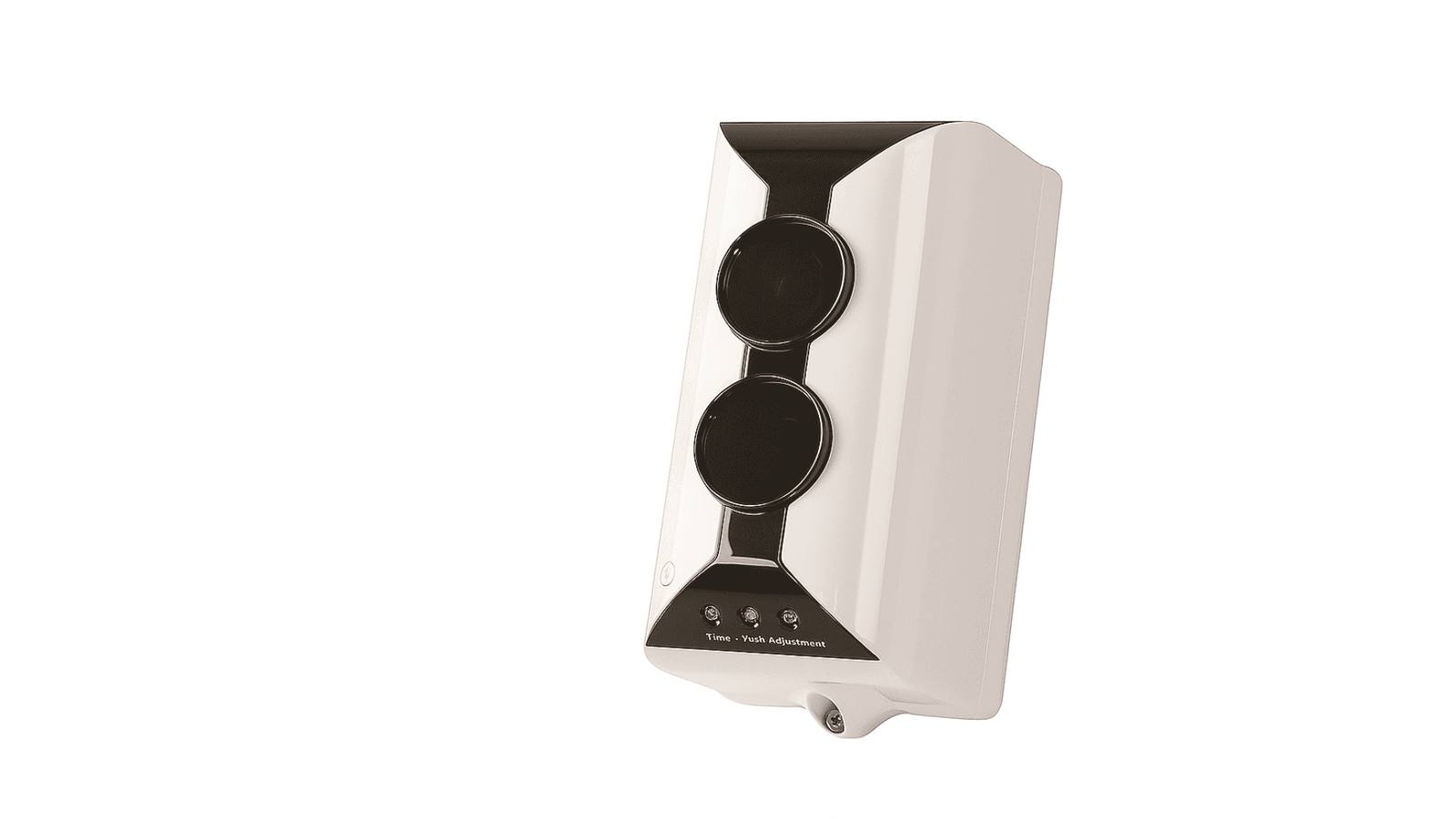

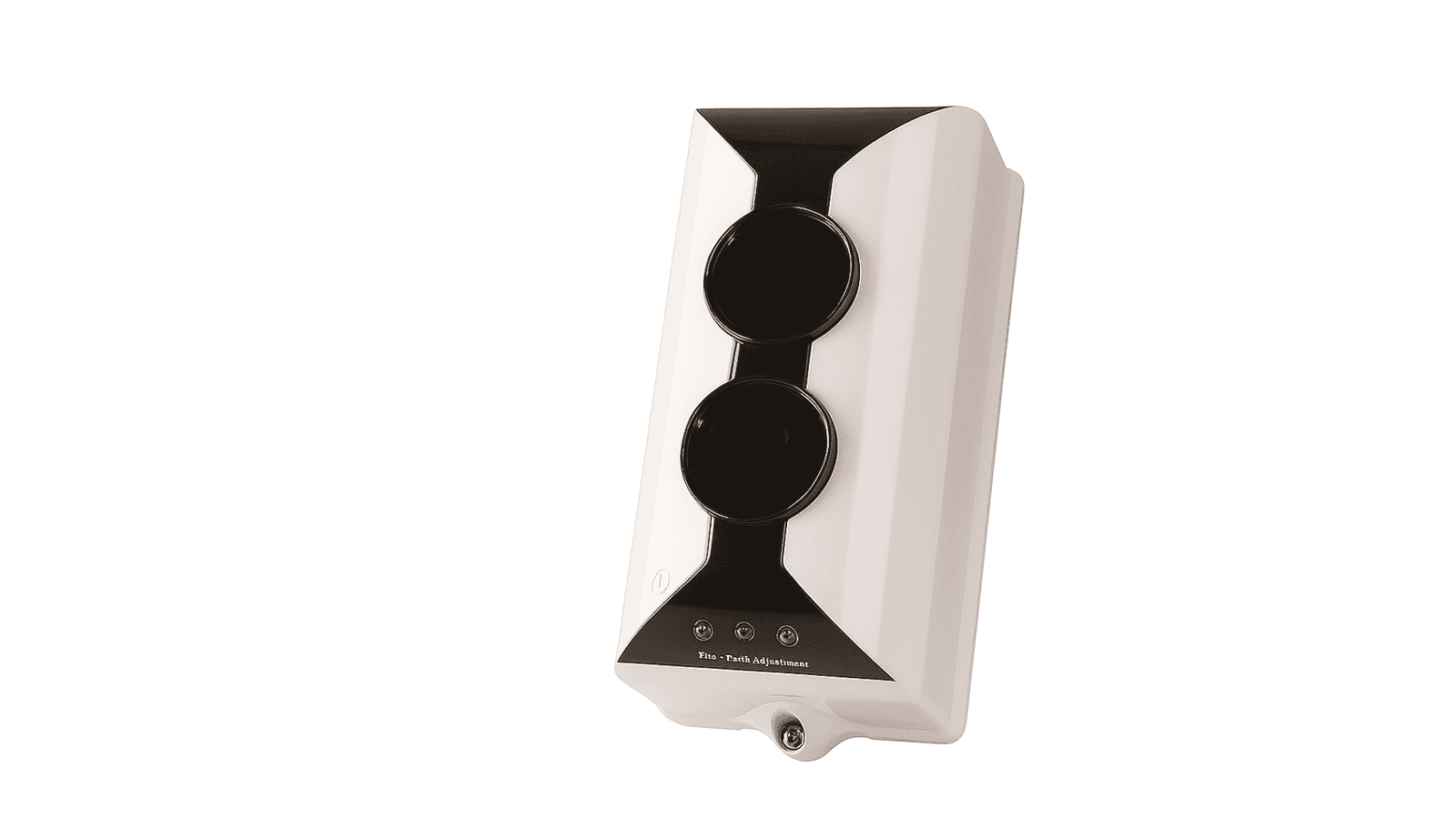

GST DC-9105E Conventional Reflective Beam Smoke Detector – Long-Range, Intelligent Fire Detection

Powered by 24V DC: This ensures compatibility with standard fire systems and stable performance.
Versatile Range: The optical pathway covers distances from 5 to 100 meters, making it suitable for many applications.
Covers up to 1400m²: With a maximum width of 14 meters, it effectively protects large areas with fewer devices.
All-in-One Mounting: The integrated transmitter and receiver design simplifies installation and ensures accurate optical alignment.
Smart Fire Detection: A microprocessor-controlled system offers improved decision-making to reduce false alarms.
Laser-Assisted Setup: The built-in laser pointer and digital signal strength indicator make alignment quick and accurate.
Proactive Fault Management: It has a self-diagnostic system to monitor internal health and alert you of any issues.
Adaptive Compensation: This feature automatically adjusts for dust, ageing, or position changes to keep detection accuracy high.
Relay Outputs for Integration: It includes a normally open fire output and a normally closed fault dry contact output for easy panel connections.
Adjustable Sensitivity: You can customise detection levels with four field-set sensitivity options to fit your environment.
Third-Party Certified: LPCB approval guarantees compliance with international fire safety regulations.

Product Description:

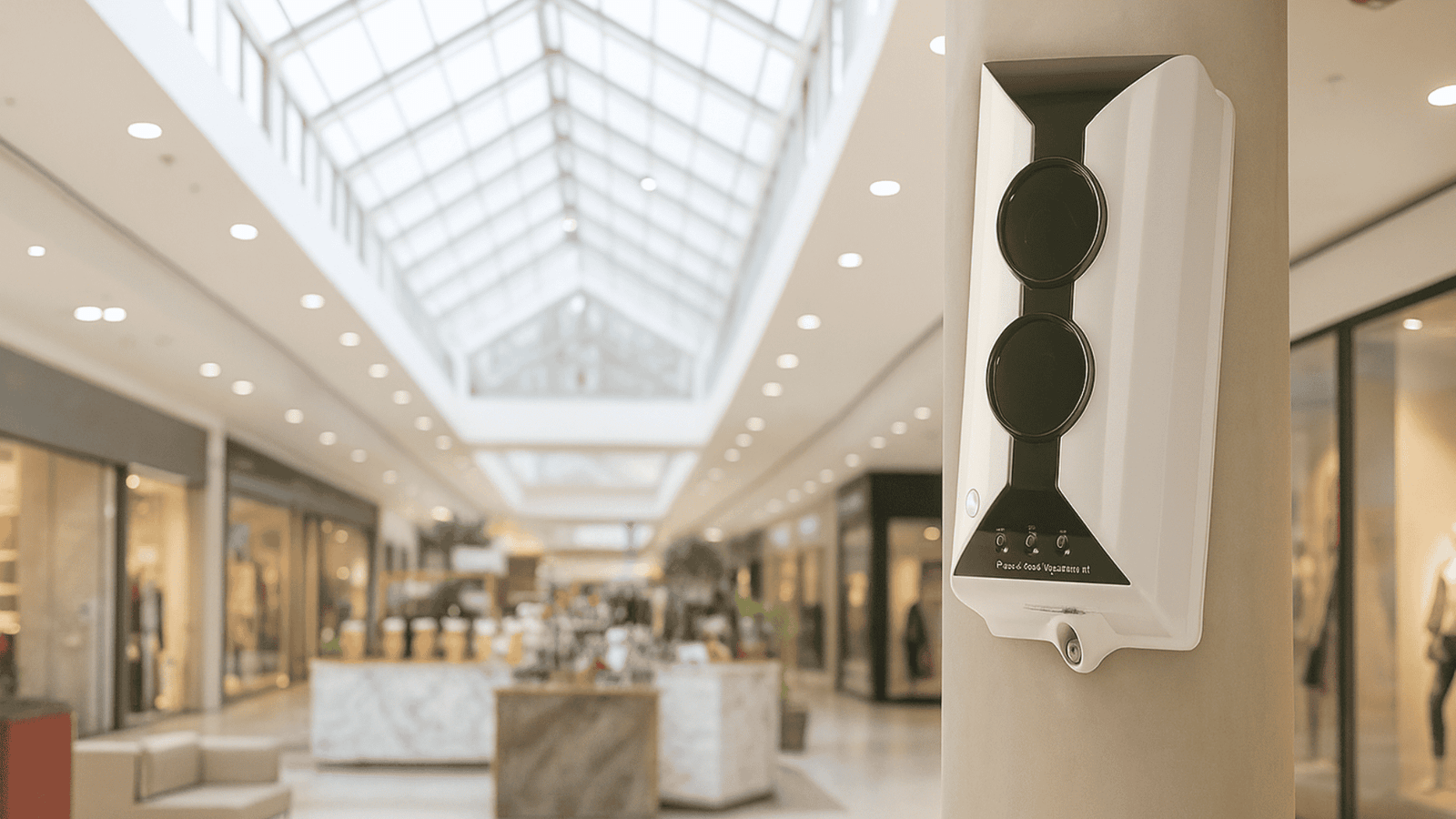

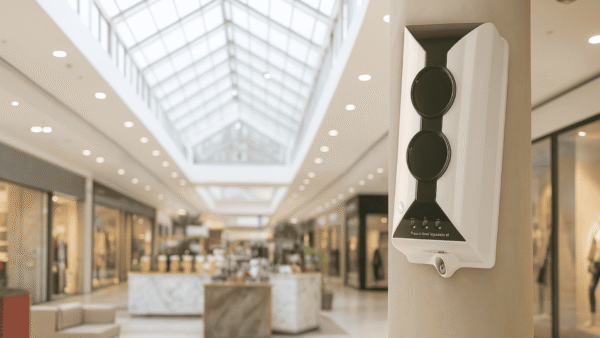

The GST DC-9105E Conventional Reflective Beam Smoke Detector is a reliable smoke detection solution designed for large open areas where traditional detectors might struggle. It is perfect for warehouses, atriums, shopping malls, airports, and industrial facilities. This device provides fire protection across wide spaces without needing multiple point detectors.

It operates on a 24V DC power supply and uses reflective infrared technology to precisely detect smoke particles. It covers distances from 5 to 100 meters and monitors areas up to 1400m², with a width of 14 meters. This makes it a cost-effective and efficient choice for high-ceiling and spacious environments.

The GST DC-9105E has a built-in microprocessor that allows for intelligent signal analysis. This helps the detector tell the difference between real fire events and potential false alarms from dust, lightning, or other environmental factors. The integrated laser alignment tool and digital signal strength indicator simplify installation and calibration. This reduces setup time and ensures accurate alignment.

For added reliability, the detector includes drift compensation, self-diagnostics, and adjustable sensitivity levels. These features help maintain consistent performance, lower maintenance needs, and ensure early smoke detection, even in tough industrial conditions.

Additionally, the GST DC-9105E supports standard N/O fire and N/C fault dry contact outputs. This makes it easy to integrate with standard fire alarm panels and broader fire safety systems. Its LPCB certification confirms compliance with international fire safety standards, giving building owners and facility managers peace of mind.

Built for long-lasting durability, intelligent operation, and excellent coverage, the GST DC-9105E Conventional Reflective Beam Smoke Detector is the trusted choice for protecting large facilities against fire hazards while providing efficient monitoring and reliable protection.

Tech Specs & Resources

Operating Voltage	24VDC (18V~28V)
Commissioning current	≤ 20mA
Standby current	≤ 12mA
Alarm current	≤ 22mA
Angle of Adjusting Maximum angular misalignment	-6°to +6° ±0.5°
Sensitivity Level:	Level 1: 1.3dB Level 2: 1.8dB (factory default) Level 3: 2.3dB Level 4: 2.8dB
Operating Environment:	Temperature: -10°C – +50°C Relative Humidity≤ 95%, non- condensing
Ingress Protection Rating:	IP20 without glue-seal IP66 through glue-seal treatment
Material and Color of Enclosure	ABS, gray
Dimensions	206mm X 95mm X 95mm
Weight	450g

GST DC-9105E Conventional Reflective Beam Detector

24V powered, Maximum monitoring area, Built-in microprocessor enables intelligent judgment about fire alarm and fault.

GST DC-9105E Conventional Reflective Beam Smoke Detector Datasheet Download

Benefits & Usage of GST DC-9105E Conventional Reflective Beam Smoke Detector

Long-Range Coverage: Monitors up to 100 meters with a wide detection span of 14 meters, which is ideal for large open spaces.
Easy Installation: The combined transmitter and receiver unit makes mounting simple and ensures perfect alignment with a built-in laser pointer.
Smart Detection with Microprocessor Control: This system can tell the difference between fire conditions and system faults, providing reliable alerts and reducing false alarms.
Auto Drift Compensation: It adjusts for changes such as dust buildup, sensor misalignment, or component ageing, ensuring consistent performance over time.
Flexible Sensitivity Settings: Four configurable levels allow for customised responses based on environmental conditions.
Real-Time Fault Monitoring: Self-diagnostic functions track internal issues, enabling proactive maintenance and reducing downtime.
Standard Fire Alarm Integration: It has fire and fault relay outputs for smooth integration with conventional fire alarm control panels.
LPCB Certified: This product meets strict international standards for performance, safety, and reliability.
