Engineered for Heat. Designed for Precision.

The GST DI-9103E Intelligent Heat Detector provides reliable fire detection with rate-of-rise and fixed temperature sensing. It is made for tough environments. The detector includes electronic addressing, self-diagnostics, programmable sensitivity levels, and a 360° LED indicator.

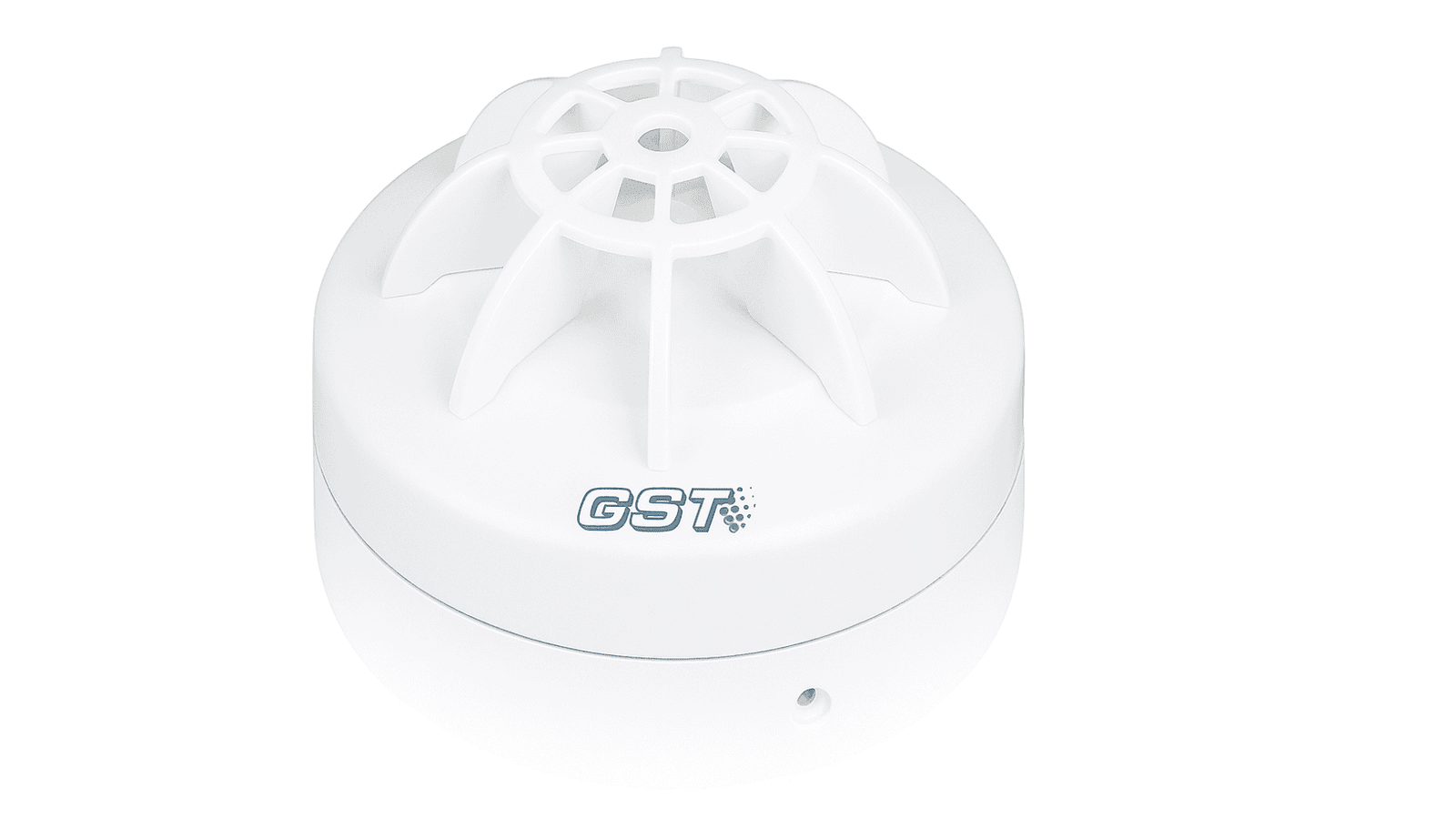

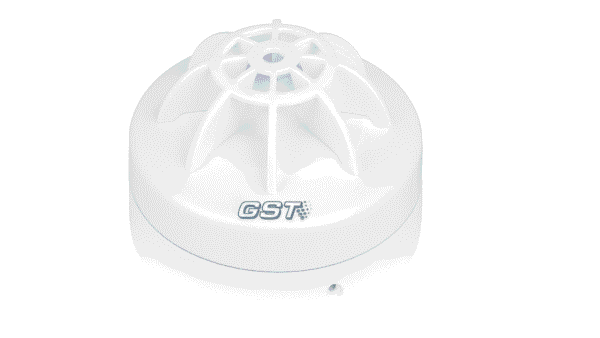

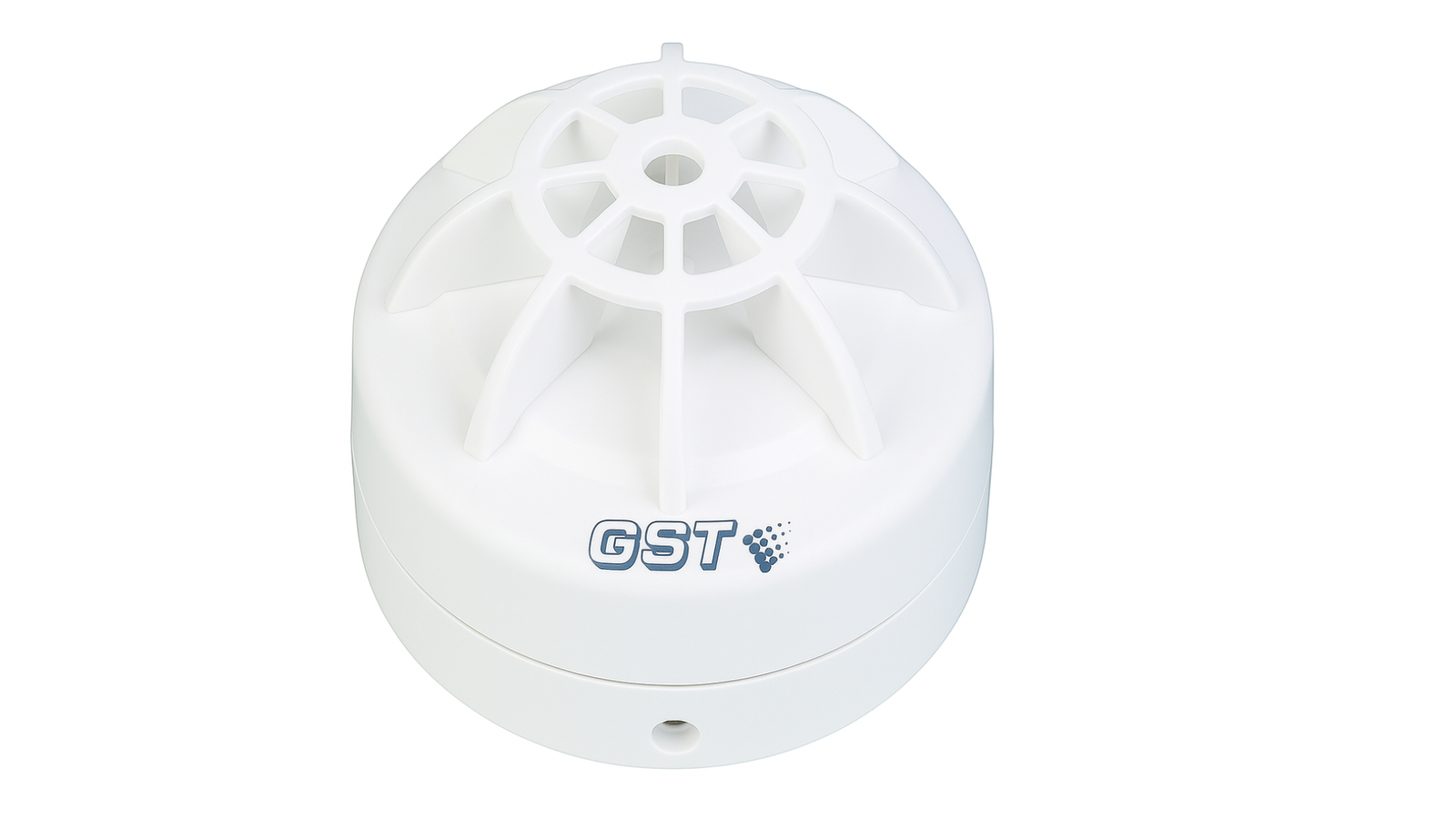

GST DI-9103E Intelligent Heat Detector – Dual Mode Temperature Sensing for Fast, Reliable Fire Detection

Electronically Addressable for Smart Integration
Easily integrates into addressable fire alarm systems, allowing individual device identification and efficient monitoring across the network.
Magnetic Test for Quick Maintenance
Supports hassle-free testing with a magnet, requiring no physical contact or disassembly. This saves time during routine inspections.
Built-in Self-Diagnostic Function
Continuously monitors internal components and system health. This ensures reliability and helps detect faults early.
Reed Switch Testing
Enables safe and simple functional testing without disturbing the detector’s installation, making it ideal for regular compliance checks.

Product Description:

The GST DI-9103E Intelligent Heat Detector is a precise fire detection device that responds quickly and reliably to fire hazards in various environments. It uses both rate-of-rise and fixed temperature sensing to identify sudden temperature increases and sustained high heat levels. This ensures early detection and timely alerts to protect property and people.

With a smart microprocessor, the DI-9103E can accurately tell real fire events apart from harmless changes in the environment, which cuts down on false alarms and improves overall safety. This electronically addressable heat detector works well with addressable fire alarm control panels. This allows for centralised monitoring, easier maintenance, and straightforward system checks for facility managers and safety teams.

The DI-9103E is perfect for locations where smoke detectors do not work well, like commercial kitchens, mechanical rooms, warehouses, industrial plants, and areas with dust or humidity. By focusing on heat detection, this device offers a reliable solution where smoke sensors might not perform effectively, ensuring reliable fire protection.

Built to last, the DI-9103E has a sturdy, compact design and is LPCB-certified, meeting international fire safety standards. Its reliable performance, smart sensing, and easy integration with addressable systems make it a vital part of modern fire alarm setups, providing accurate alerts and peace of mind.

Whether used in industrial, commercial, or specialised settings, the GST DI-9103E Intelligent Heat Detector offers quick and reliable fire detection, lowers false alarms, and boosts overall safety. It is a crucial choice for any fire safety approach.

Tech Specs & Resources

Standard	EN54-5
Operating Voltage	24VDC
Operating Current	Standby Current: 0.6mA Alarm Current: 1.5mA (without remote indicator)
Operating Environment	Temperature: -10℃ ～+50℃ Relative Humidity: 95%, non condensing
Detector Class	A1R, A2S, BS
Dimensions	Diameter 100mm, Height 53.3mm(with base)

GST DI-9103E Intelligent Rate of Rise

Electronically Addressable for Smart Integration, Magnetic Test for Quick Maintenance, Built-in Self-Diagnostic Function, Reed Switch Testing, Three Programmable Sensitivity Classes

GST DI-9103E Intelligent Heat Detector Datasheet

Benefits & Usage of GST DI-9103E Intelligent Heat Detector

Dual Heat Sensing: Detects both rapid temperature rise and fixed heat thresholds.
Addressable Technology: supports smart system integration and real-time status reporting.
False Alarm Reduction: Intelligent processing distinguishes true threats from environmental changes.
Reliable in harsh conditions: Ideal for dusty, humid, or high-heat environments.
Compact design with 360° LED Indicator: Provides clear alarm visibility from any angle.
LPCB Certified: Trusted and approved for compliance and quality.
