Smart Control. Scalable Protection. Touch-Screen Simplicity.

The GST-IFP4E is a strong addressable fire alarm control panel made for large-scale use. It features a 7-inch touchscreen, smart device management, and can support up to 1,452 addresses. This panel provides exact control, quick response, and easy expansion from a user-friendly interface.

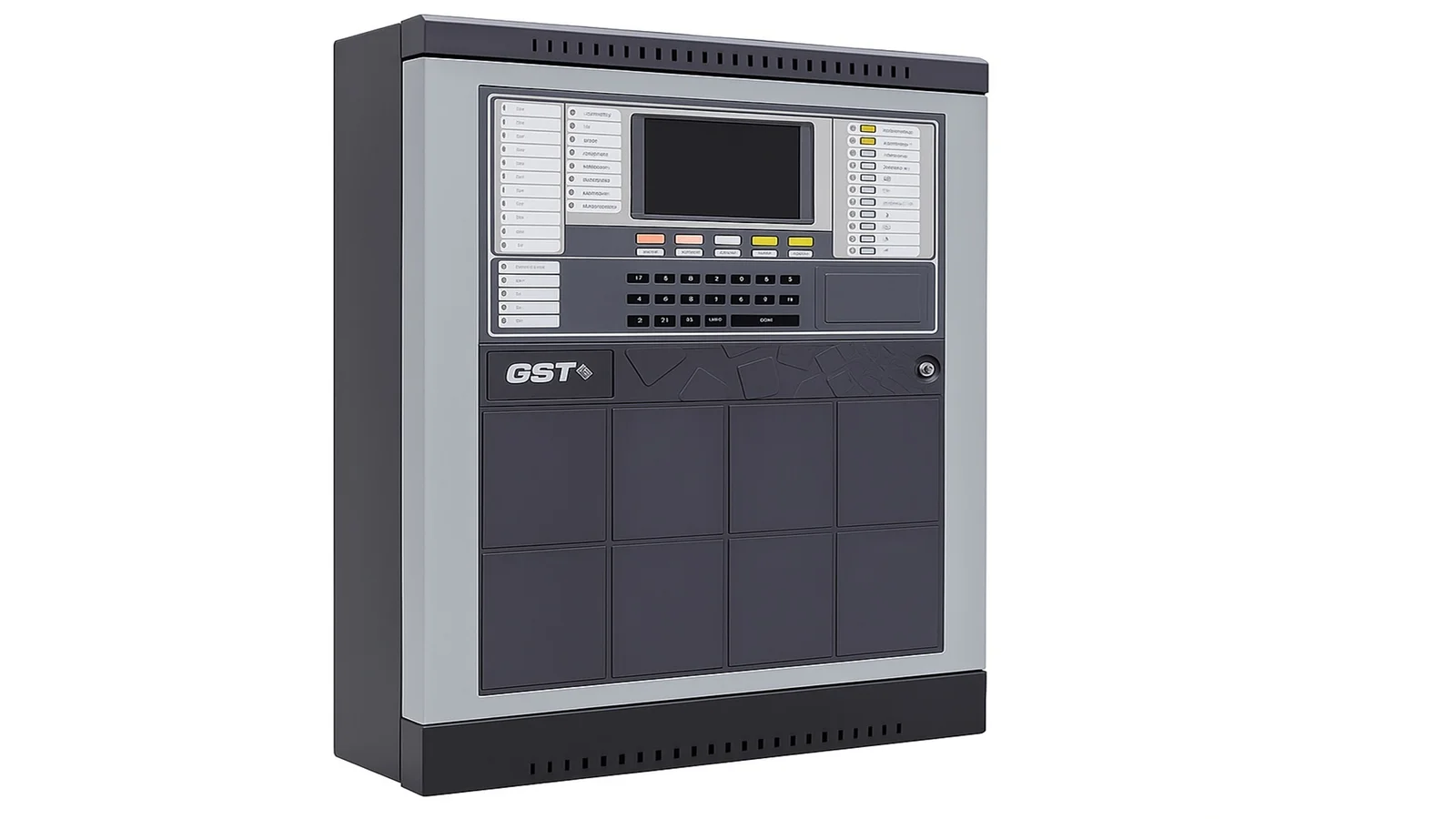

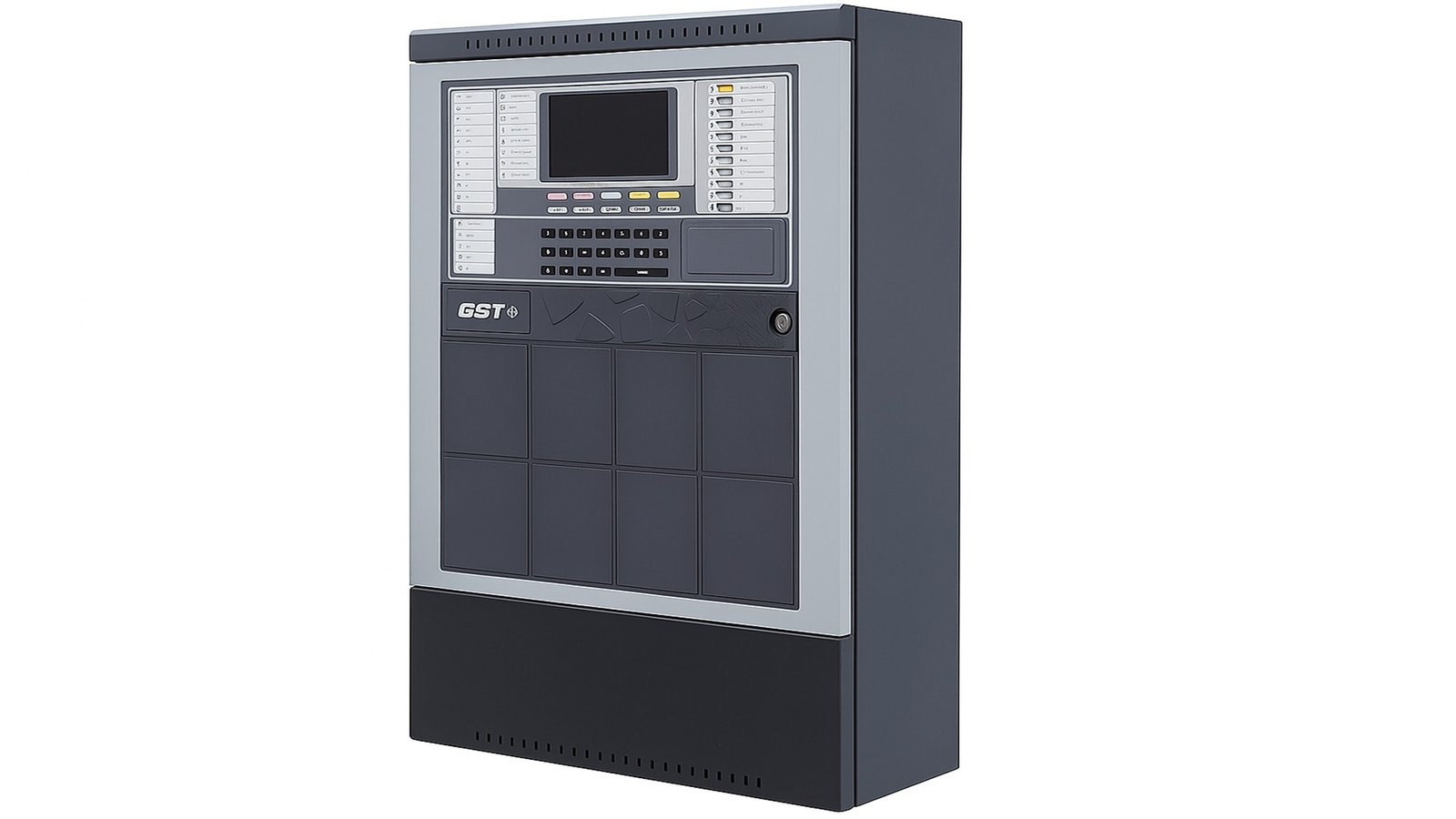

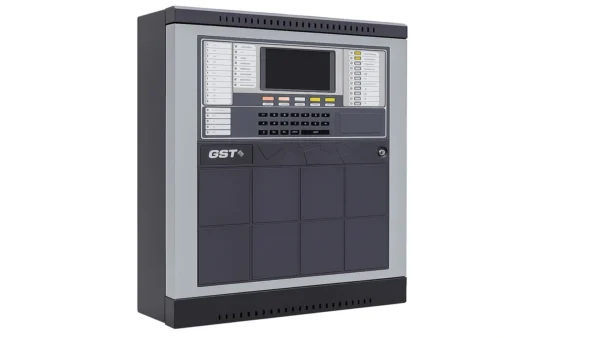

GST-IFP4E Advanced Touchscreen Addressable Fire Alarm Control Panel for Large-Scale Safety Systems

7-Inch Touchscreen Interface: A vibrant 7″ TFT colour display (800×480 resolution) provides easy navigation, real-time system updates, and simple configuration; no technical expertise is needed.
High Device Capacity for Large Installations: Supports 1 to 6 Class A loops and manages up to 1,452 addressable devices, making it ideal for complex buildings like hospitals, airports, malls, and data centres.
Powerful Logic Programming for Custom Responses: Offers cause and effect programming with AND, OR, NAND, and NOR logic. This enables tailored fire response strategies and supports virtual variables.
Multi-Language Support for Global Applications: Easily switch interface languages to accommodate multi-site operations or international teams; this is perfect for multinational businesses and export projects.
Auto-Learning for Faster Setup: Automatically detects panel hardware and loop devices, which reduces commissioning time. Mismatch alerts quickly identify incompatible devices.

Product Description:

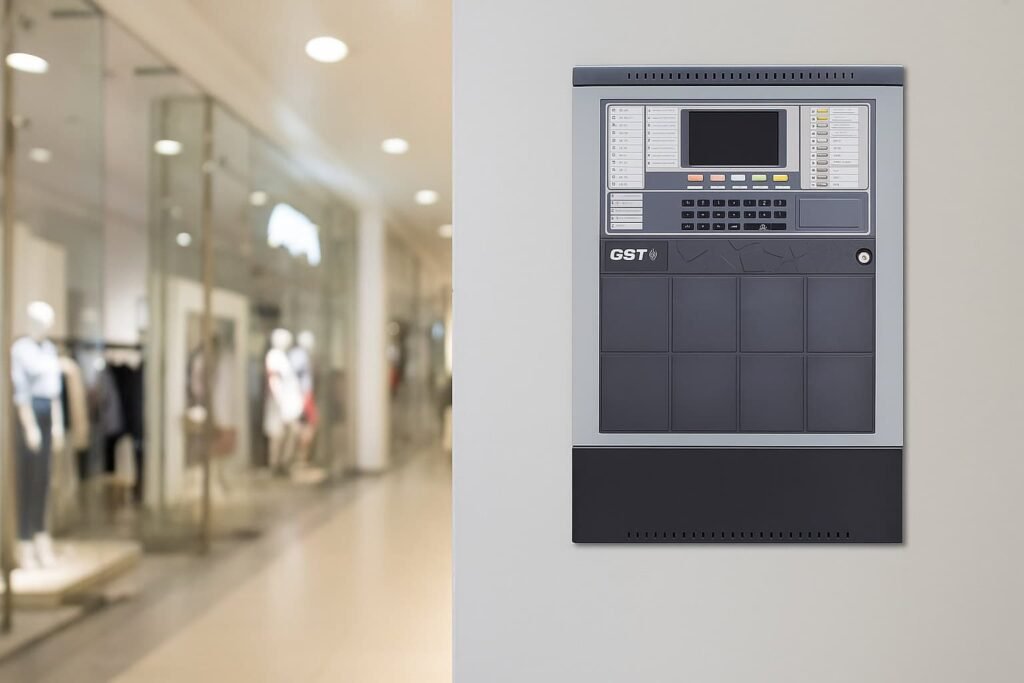

The GST-IFP4E Advanced Touchscreen Addressable Fire Alarm Control Panel is a next-generation, addressable fire alarm control panel designed for advanced fire detection, flexible integration, and user-friendly operation. It is designed to protect large commercial, industrial and institutional spaces. This intelligent panel combines high-performance fire safety with intuitive touchscreen control.

At the core of the GST-IFP4E is a 7-inch TFT touch screen (800×480 resolution) control panel that simplifies system navigation and configuration. With support for 1 to 6 Class A loops, the panel can manage up to 1,452 addressable devices, offering exceptional scalability across large premises. Whether it’s a hospital, airport, or multi-floor commercial building, this system ensures reliable fire monitoring and control.

The GST-IFP4E panel features powerful cause-and-effect programming using AND, OR, NAND, NOR logic and virtual variables perfect for creating tailored response strategies. It also supports multi-language interfaces, making it ideal for global and multi-site installations.

GST-IFP4E panel provides various usability features, including auto-learning of hardware, device mismatch alerts, detector chamber dirty level detection and a 100,000-event history log for precise diagnostics. Its advanced maintenance tools, like walk test (silent/audible) and positive alarm sequence (Type A & B), enhance operational efficiency.

Its built-in LAN and USB ports enable fast programming and database updates, while email notifications provide real-time alerts to facility managers. Additionally, the system supports up to 250 networked panels and secure database management via USB dongle.

With robust construction, IP30-rated protection and compatibility with high-capacity backup batteries, the GST-IFP4E Advanced Touchscreen Addressable Fire Alarm Control Panel is engineered for mission-critical fire protection with maximum reliability.

Tech Specs & Resources

Primary Supply:	110VAC~230VAC
Battery:	Two 12V/38Ah sealed lead-acid batteries,Max. Two 12V/65Ah (additional battery box required)
Loop Capacity:	1~6 loops
Device Capacity:	242 addresses per loop
Loop Parameter:	Voltage: Nominal 24VDC Average current: 130mA Maximum alarm current: 300mA Maximum wiring resistance: 18ohms(each line)
Fire alarm and AUX outputs:	Fire alarm and AUX outputs Class B.Power-limited Output Voltage: Nominal 24DC Max. Current: Totally 2.5A
Input Rating: Maximum current:	1.7mA (short circuit)
Printer:	Thermal, ASCll code printer
LCD Display:	7″ TFT touch screen,800×480
Network Nodes:	Max. 250 panels
PC Port:	LAN/USB interface
Protection:	IP30
Operating Environment:	-5~50°C, ≤93% RH, non-condensing
Dimensions:	516mm(W)x 840mm(H)x180mm(D)

GST-IFP4E

7-Inch Touchscreen Interface, High Device Capacity for Large Installations, Powerful Logic Programming for Custom Responses, Multi-Language Support for Global Applications

GST-IFP4E Advanced Touchscreen Addressable Fire Alarm Control Panel Datasheet Download

Benefits & Usage of GST-IFP4E Advanced Touchscreen Addressable Fire Alarm Control Panel

Enhanced User Experience with Touchscreen Interface: The large 7-inch touch display offers a simple, interactive interface. This makes it easier for operators to monitor and configure the fire alarm system without technical complexity.
Scalable for Complex and Large-Scale Buildings: The system supports up to 6 loops and 1,452 addressable devices. This makes it ideal for multi-building campuses or large infrastructure projects where extensive device coverage is needed.
Smarter Response Through Advanced Logic Programming: With graphic cause-and-effect logic (AND, OR, NAND, NOR), users can create custom response actions. This ensures faster and smarter decision-making during emergencies.
Reduced Downtime and Maintenance Costs: Features like auto-learning, detector dirt level monitoring, and walk test modes help technicians identify issues early. This minimises false alarms and maintains system health with less manual effort.
Reliable Performance with Secure Data Management: The panel stores up to 100,000 events and supports USB dongles to protect sensitive system configurations. This ensures both data integrity and cybersecurity.
