Advanced Addressable Fire Safety, Engineered for Critical Spaces

Support for up to 8 loops and more than 2000 addressable devices. It provides smart detection, easy setup, and smooth integration with building management systems.

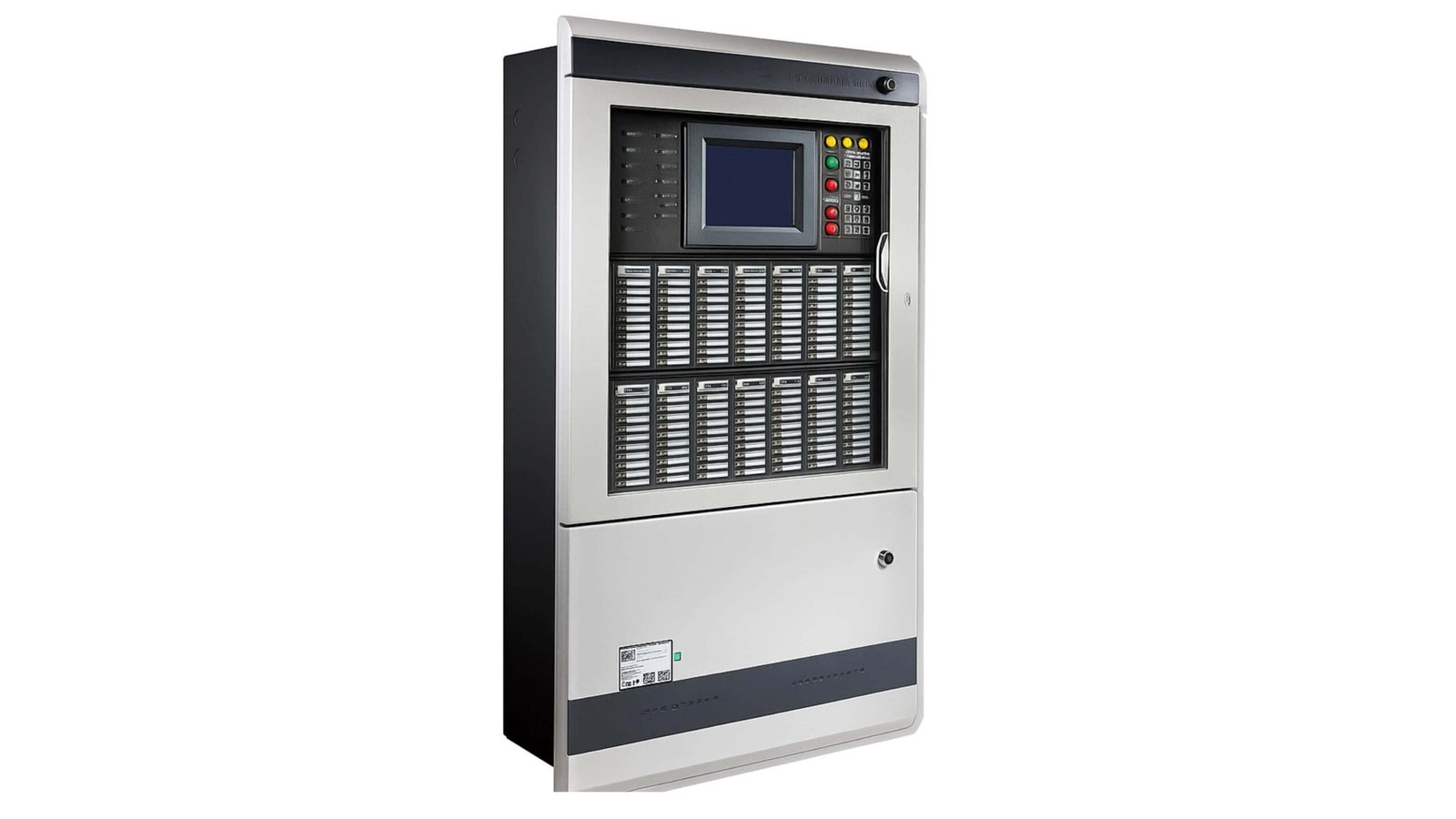

GST-IFP8 Addressable Fire Alarm Control Panel

Supports up to 999 Zones: You can easily monitor large facilities. The 140 zones have dedicated alarm, fault, and disable LEDs, along with customizable labels for quick identification.
Expandable Up to 8 Class A Loops: Each loop can support up to 242 addressable devices. This makes it suitable for large buildings and complex infrastructures.
Clear and Informative 15×40 LCD Display: The high-resolution screen works with 17 status LEDs. It provides real-time alerts, diagnostics, and operational clarity.
Fully Compatible with GST EN Addressable Range: It integrates smoothly with GST’s complete series of EN-certified addressable detectors, modules, and digital accessories.
Non-Volatile Memory for Data Retention: Critical system data stays safe even during unexpected power loss. This ensures uninterrupted monitoring and quick recovery.

Product Description:

The GST-IFP8 Addressable Fire Alarm Control Panel is a high-performance fire detection system designed to protect large and complex infrastructures. Built with state-of-the-art addressable technology, this smart control panel offers excellent scalability, precise monitoring, and meets international fire safety standards, including EN54-2 and EN54-4.

With support for up to 8 Class A loops and over 1,900 addressable devices, the GST-IFP8 is perfect for commercial buildings, data centres, industrial facilities, hospitals, and critical infrastructure. The system can handle up to 999 detection zones, with 140 zones featuring dedicated alarm and fault LEDs for quick identification and faster responses. The panel has a 15×40 character LCD and 17 LED indicators that provide real-time system status, fault alerts, and device diagnostics. Its non-volatile memory ensures that important configuration and event data are saved even during unexpected power failures.

Designed for full compatibility with GST’s EN-certified addressable detectors and modules, the GST-IFP8 allows for easy integration and operational flexibility. It features multiple communication interfaces, including RS232 and dual RS485 ports, enabling communication between the panel and PC, system networking, and repeater connectivity for better coverage. From fire alarm announcements to smart event logging and centralized control, the GST-IFP8 sets a new standard in modern fire safety technology. Whether you are protecting a high-rise, a manufacturing facility, or a mission-critical data centre, this panel offers reliability, scalability, and intelligent protection when you need it most.

Tech Specs & Resources

Primary Supply:	220/230VAC,50/60Hz
AC Current:	1A
Standby Power:	38AH/24VDC
Max. Battery Resistance:	0.7Ω
Loop Capacity:	2-8 Loops
Zone Capacity:	999 (140 with individual alarm/fault indicator and label)
Device Loop:	242 addresses per loop
Printer:	Thermal ASCll code printer
Display:	15(lines)x40(characters), LCD
Network (RS485):	Class A, Max. 32 panels (by card)
Network (CAN):	Class A, Max. 100 panels (by card) Class B, Max. 240 panels (by card and other accessories)
PC Port:	RS232/USB interface (by card)
Protection:	RS232/USB interface (by card)
Operating Environment:	0°C~+40°C ≤95%, non-condensing
Dimensions:	484mm(W)x850mm(H)x191mm(D)

GST-IFP8

15×40 LCD Display, Fully Compatible with GST EN Addressable Range, Non-Volatile Memory for Data Retention

GST-IFP8 Addressable Fire Alarm Control Panel datasheet

Benefits & Usage of GST-IFP8 Addressable Fire Alarm Control Panel

Scalable for Complex Installations: Supports up to 8 Class A loops and over 1,900 addressable devices, making it ideal for large commercial and industrial facilities.
Intelligent Fire Detection: Pinpoints the exact location of fire or fault events. This minimises response time and reduces false alarms.
User-Friendly Interface: Features a 15×40 LCD and 17 LED indicators for real-time system status, fault alerts, and zone-specific information.
Reliable Data Retention: Non-volatile memory keeps system configurations and event logs safe, even during unexpected power failures.
Seamless System Integration: Fully compatible with GST’s entire range of EN-certified addressable detectors, modules, and repeaters for easy expansion and customisation.
