Engineered for Accuracy. Built for Reliability

The GST R6601 Conventional Smoke Detector provides smoke sensing that is not affected by dust, insects, or interference. This makes it perfect for reliable fire detection in any environment.

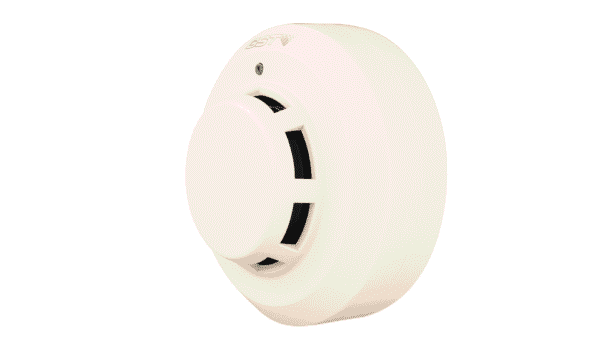

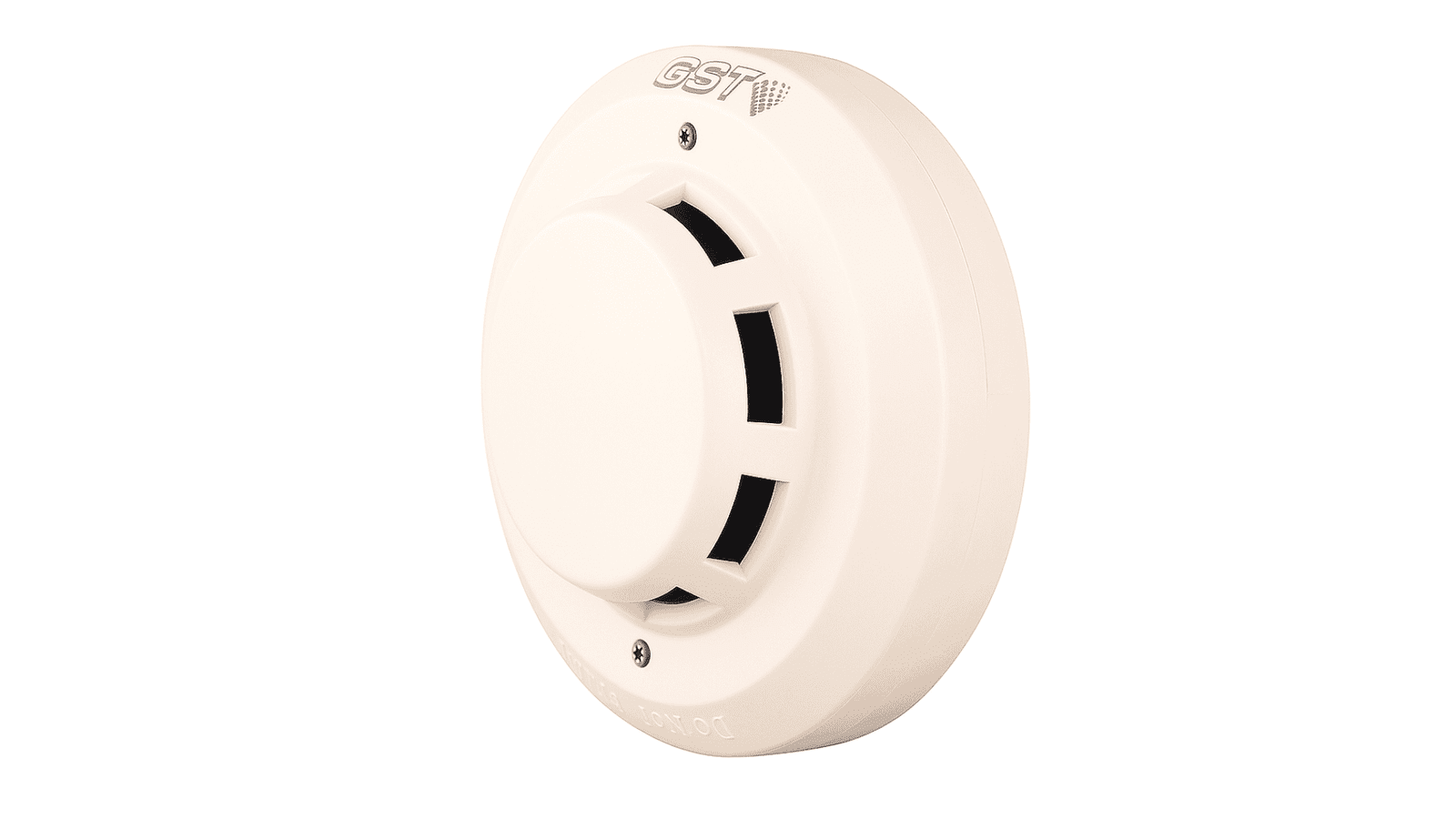

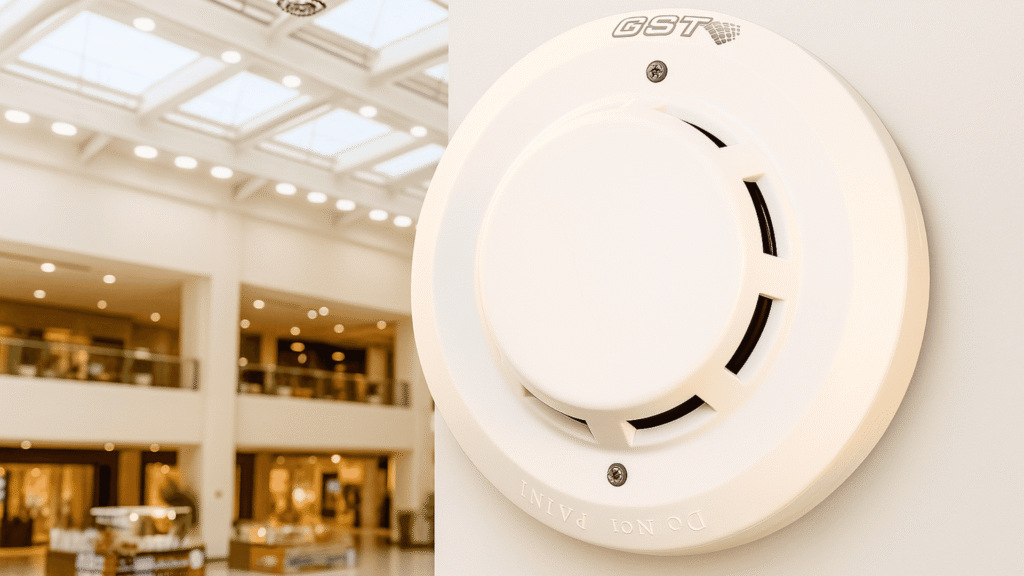

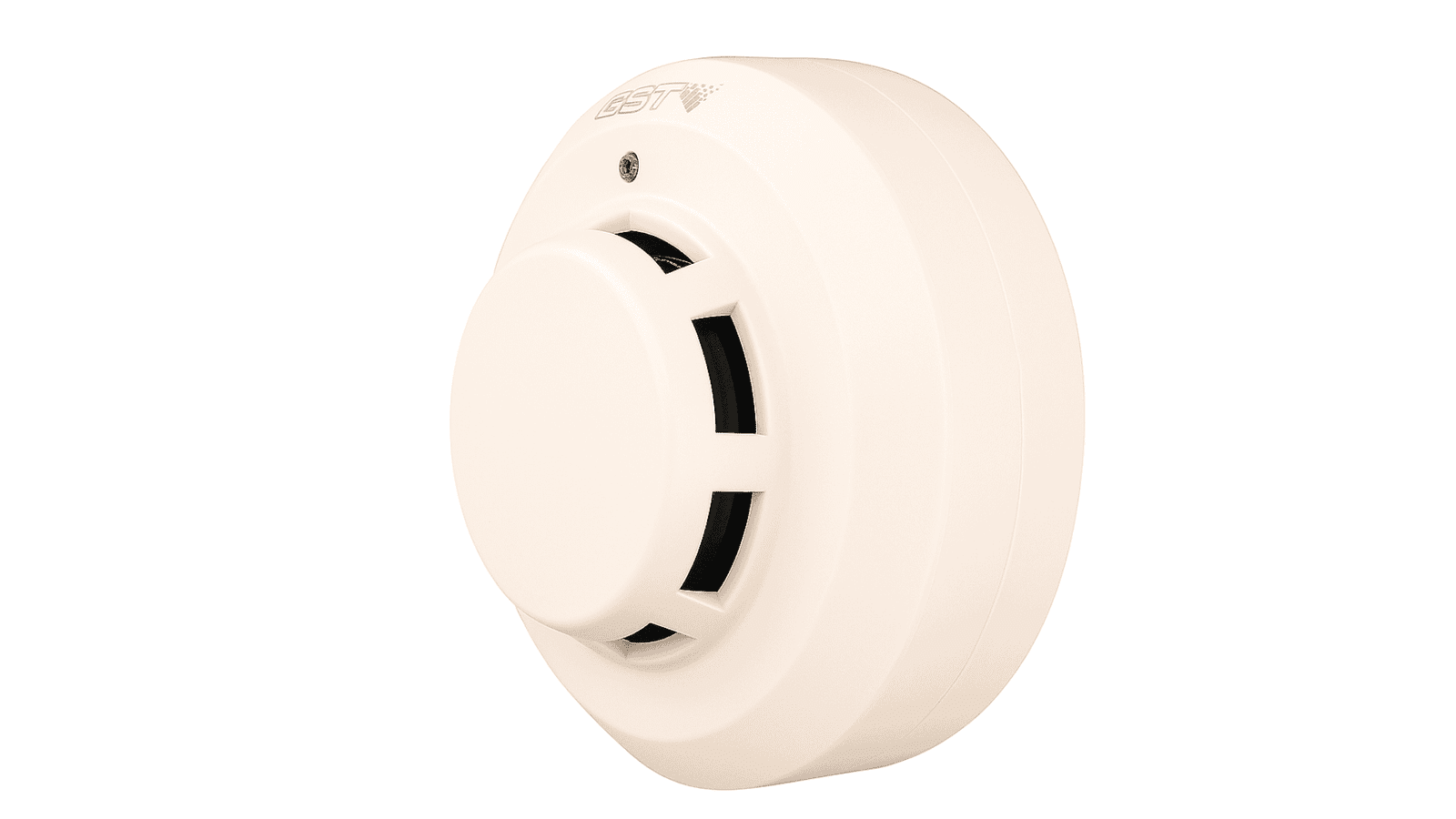

GST R6601 Conventional Smoke Detector – High-Sensitivity Optical Detection with Insect & Dust Protection

N/O Contact Output: The detector provides a normally open dry contact output. It closes and locks itself when an alarm is triggered. This ensures reliable communication with the control panel.
Scattering-Based Sensing Technology: The detector uses optical scattering principles to quickly and accurately detect smoke particles. This ensures early fire detection.
Advanced Labyrinth Structure: The specially designed labyrinth stops insects, dust, and ambient light from entering the sensing chamber. This greatly reduces false alarms.
False Alarm Prevention: Its strong physical design filters out environmental interference. This improves detection accuracy in dusty or semi-open areas.
Universal Compatibility: The detector easily integrates into most traditional fire alarm systems. This makes it a versatile option for both retrofits and new installations.

Product Description:

The GST R6601 Conventional Smoke Detector is a reliable and affordable fire detection option designed for homes, businesses, and light industrial spaces. It provides early warnings and quick responses by using scattering technology to detect visible smoke particles quickly and accurately. This helps identify potential fire hazards early, reducing damage and improving safety for occupants.

With a unique labyrinth design, the GST R6601 Conventional Smoke Detector minimises common causes of false alarms, such as insects, dust, and stray light. This design maintains high detection accuracy even in challenging or dusty conditions, allowing for constant fire monitoring without unnecessary interruptions.

The detector features a normally open (N/O) contact output that automatically closes and locks when the alarm is activated. This mechanism ensures that the alarm signal is reliably sent to the fire alarm control panel, allowing for smooth integration with your existing fire safety system. Its compact profile enables easy installation, while simple wiring makes setup and maintenance quick and easy.

Built for durability, the GST R6601 Smoke Detector offers long-lasting performance with minimal upkeep. Its strong design ensures reliable use in various environmental conditions, making it suitable for both new installations and upgrades. By combining effective smoke detection technology with easy installation features, this detector improves fire safety approaches and provides peace of mind for building owners, facility managers, and occupants.

For any residential, commercial, or light industrial site, the GST R6601 Conventional Smoke Detector offers a trusted, professional-grade solution that focuses on safety, reliability, and efficiency in fire detection.

Tech Specs & Resources

Operating Voltage	12VDC
Operating Current	Standby Current≤1mA Alarm Current≤ 20mA
Operating Environment:	Temperature: -10℃ ～+50℃ Relative Humidity: 95%, non condensing
Dimensions	Diameter 100mm, Height 56mm

GST DC-9105E Conventional Reflective Beam Smoke Detector

N/O Contact Output, Scattering-Based Sensing Technology, Advanced Labyrinth Structure, False Alarm Prevention

GST R6601 Conventional Smoke Detector Datasheet Download

Benefits & Usage of GST R6601 Conventional Smoke Detector

Fast and Accurate Smoke Detection: This system uses optical scattering technology to quickly identify smoke particles, ensuring a fast alarm response during fires.
False Alarm Resistance: An innovative labyrinth structure keeps out insects, dust, and stray light, which greatly reduces false alarms.
Secure Alarm Output: It features a normally open (N/O) dry contact output that closes and self-locks when the alarm activates. This ensures reliable communication with your fire alarm panel.
Easy Integration: It works with standard conventional fire alarm systems, making it a flexible and scalable option for both small and large setups.
Compact and Elegant Design: The sleek and unobtrusive housing fits seamlessly into any environment, whether at home, in offices, or in commercial spaces.
Low Maintenance Requirements: The dust-resistant construction and straightforward wiring cut down on service needs and improve long-term reliability.
