Smart Detection. Connected Protection.

Empower your fire safety with the GST S-9102N Stand-Alone Smoke Detector. This stand-alone alarm features optical sensing and can connect up to 30 detectors for easy multi-room protection.

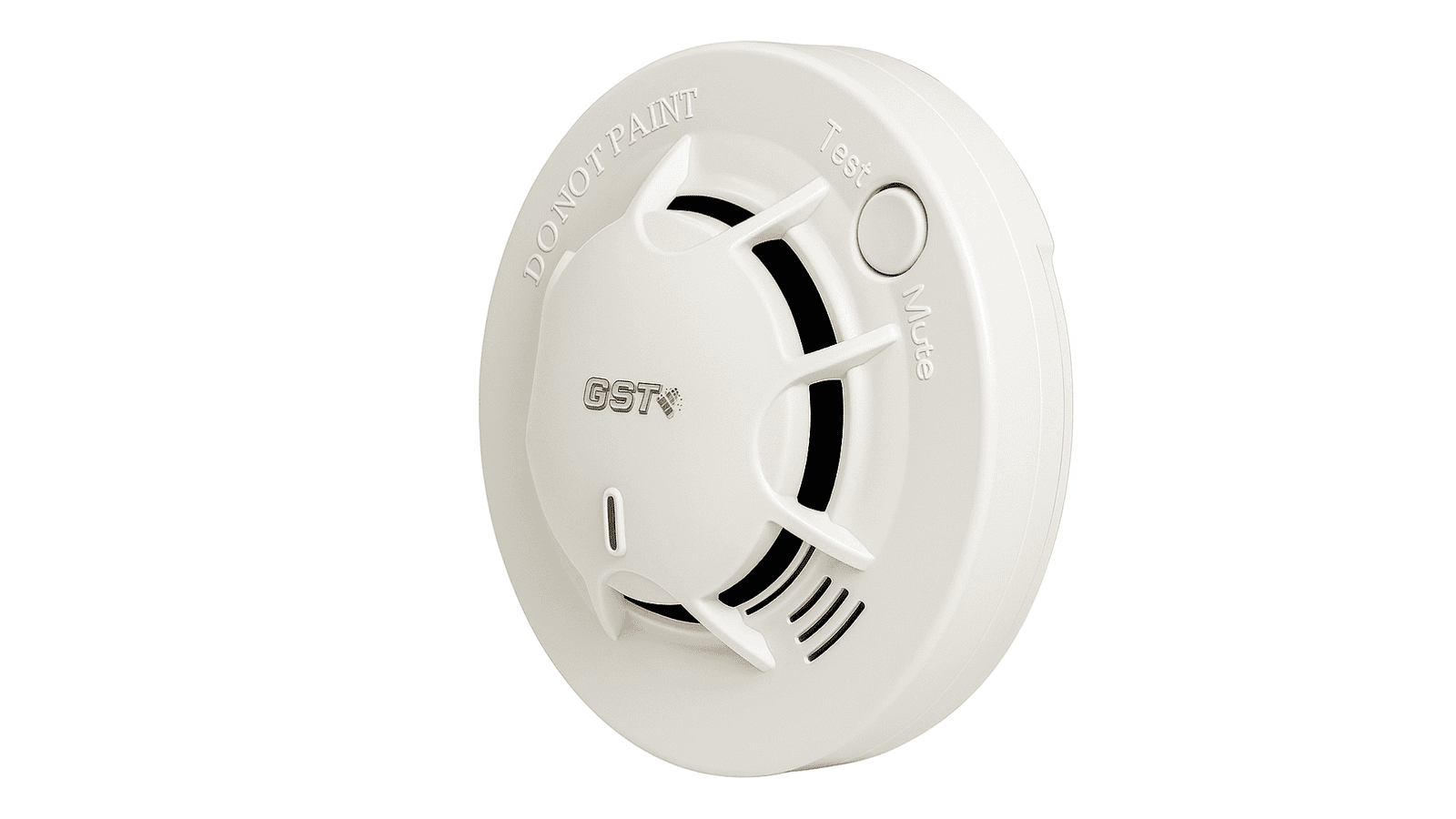

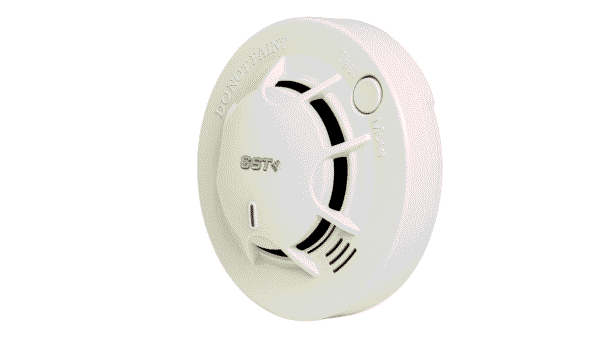

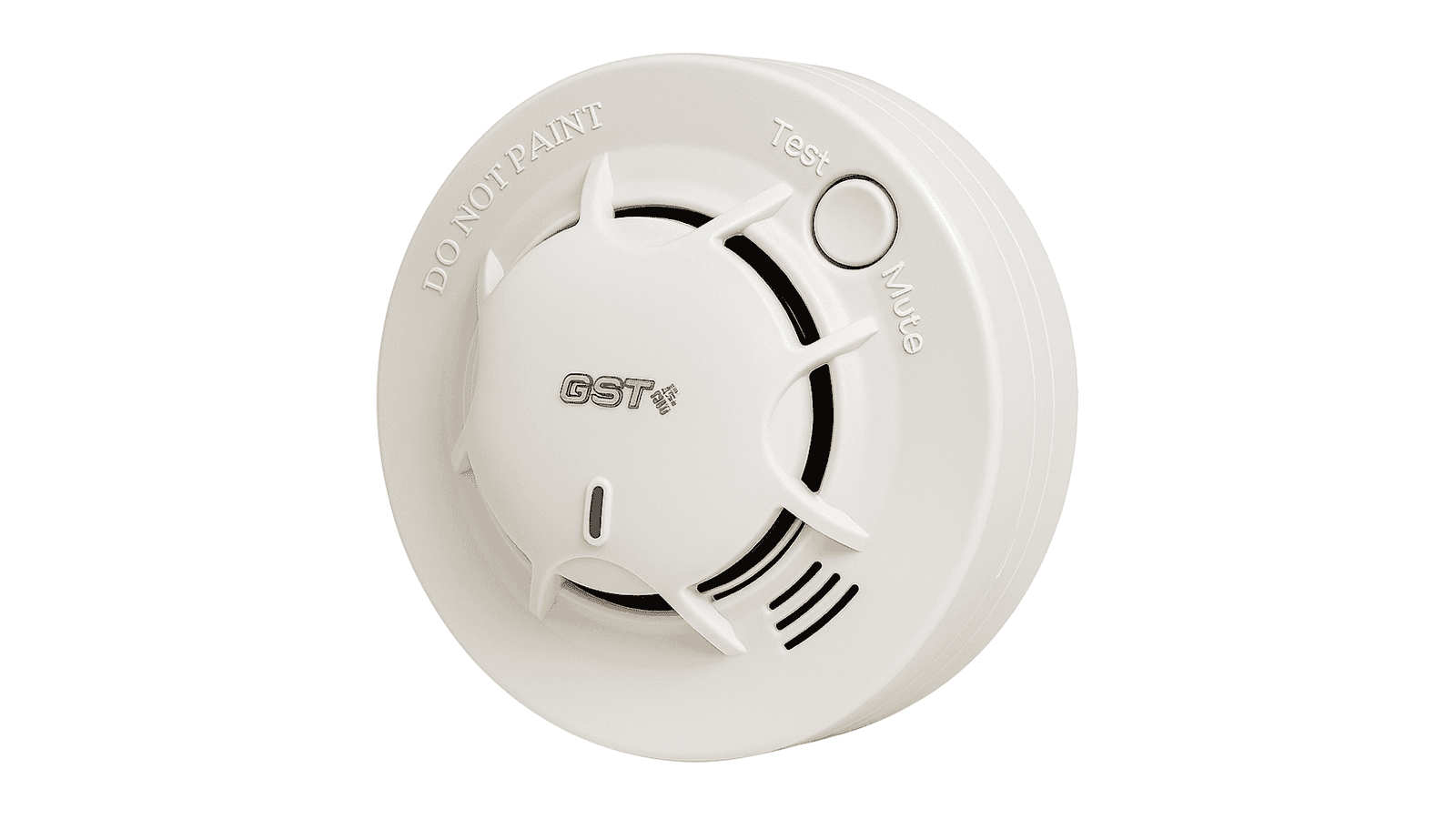

GST S-9102N Stand-Alone Smoke Detector – Interconnectable Optical Alarm with Built-in Buzzer

Self-Contained Optical Smoke Detector: This device uses photoelectric smoke sensing and has a loud buzzer to quickly alert you if smoke is present.
Simple Installation: It is easy to set up, making it perfect for both DIY users and professional installers.
Test/Reset Button: You can easily check if the device is working or reset the alarm manually after it goes off.
Low Battery Indication: It provides visual or sound alerts when the battery is low, reminding you to replace it for ongoing safety.
Interconnectable up to 30 Units: The built-in connection port lets you link multiple detectors. All alarms will sound at the same time if smoke is detected anywhere in the system.

Product Description:

The GST S-9102N Stand-Alone Smoke Detector is a self-contained fire detection solution that quickly detects smoke and provides reliable protection for both homes and businesses. It has a photoelectric smoke sensor that responds swiftly to fire hazards, ensuring safety and peace of mind for residents. The built-in alarm buzzer alerts people immediately, giving them valuable time to evacuate safely.

The GST S-9102N Smoke Detector is flexible and can work alone or connect with up to 30 other detectors. This makes it a great choice for larger homes, apartments, dormitories, offices, and hotels. When connected, all linked units sound their alarms at the same time, ensuring complete coverage and a faster response during emergencies.

Installation and maintenance are easy. The detector has a user-friendly Test/Reset button, a clear low battery indicator, and a daisy-chain connection port. These features simplify setup and keep all units working properly. Its design also allows for easy integration into current fire safety systems, cutting down installation time and costs while ensuring reliability.

The S-9102N Detector is built for high performance and durability, making it perfect for multiple rooms or floors. It provides consistent detection and early warnings where they are most needed. Whether used in homes, commercial buildings, or hotels, it offers dependable protection and improves overall fire safety.

Choosing the GST S-9102N Stand-Alone Smoke Detector means you get a proactive, expandable, and easy-to-manage smoke detection solution that focuses on occupant safety, compliance with regulations, and long-term dependability. Its blend of sensing technology, scalability, and user-friendly operation makes it a top choice for those seeking effective fire detection with minimal hassle.

Tech Specs & Resources

Power Supply	3VDC (2 AA LR6 Alkaline batteries, lasting 3 years
Sounder Output	＞ 80dB @ 3 Meter
Detection Area	60㎡～100㎡
Operating Environment	Temperature: -10℃ ～+50℃ Relative Humidity: 95%, non condensing
Dimension	Diameter 120mm, Height 58mm (with base)

GST S-9102R Stand-Alone Smoke Detector

Self-contained optical smoke detector and alarm buzzer, Easy installation, Test/Reset Button, Low battery indication

GST S-9102N Stand-Alone Smoke Detector Datasheet Download

Benefits & Usage of GST S-9102N Stand-Alone Smoke Detector

Self-Contained and Fully Functional: Equipped with an optical smoke sensor and built-in buzzer. No control panel or external device is required.
Expandable for Large Coverage: Connect up to 30 detectors through the integrated connection port. This is ideal for homes, offices, and multi-unit dwellings.
Easy DIY Installation: Quick wall or ceiling mounting with simple wiring and a compact design.
Synchronised Alarm Activation: When one unit detects smoke, all interconnected detectors sound the alarm at the same time for a fast response.
Manual Test and Reset Button: Easily test the alarm functionality and reset it after an alert using the onboard push-button.
Low Battery Alert: A visual or audible indicator warns users to replace the battery. This ensures continuous operation and reliability.
Perfect for Residential & Light Commercial Use: A flexible and cost-effective fire safety solution for homes, rental properties, guesthouses, and small commercial units.
