Compact in Size. Powerful in Protection.

The GST100 Addressable Fire Alarm Control Panel offers smart fire detection for small to medium buildings. It maintains safety and performance. It supports up to 8 detection zones and 128 addressable devices. This panel provides real-time monitoring, quick response, and easy integration with smart safety systems.

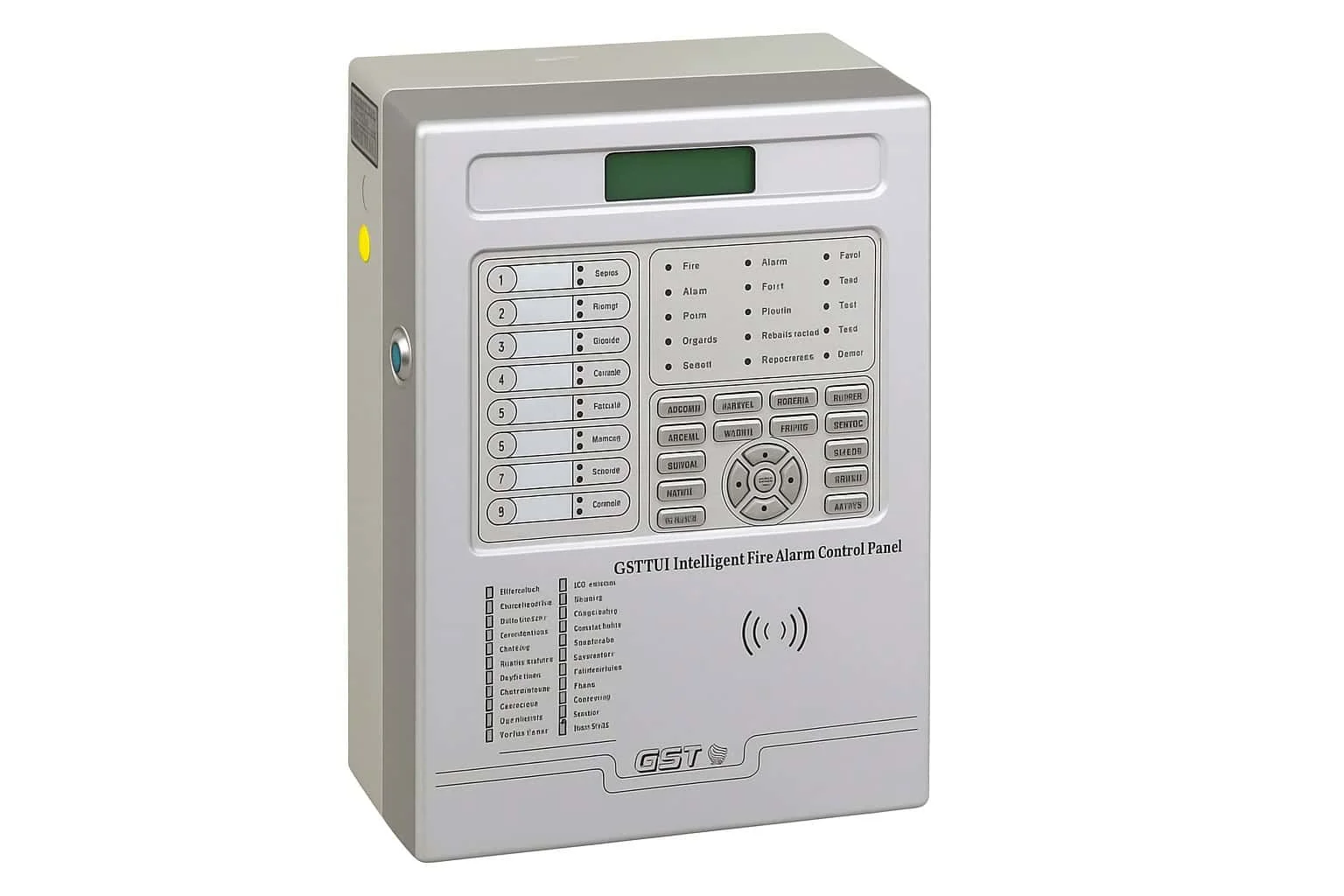

GST100 Series – Compact Intelligent Addressable Fire Alarm Control Panel

GST100 Series – Compact Intelligent Addressable Fire Alarm Control Panel for Small to Medium Facilities

Up to 8 Independent Detection Zones: Monitor multiple areas with precision. Each zone has its own fire LED, fault/disable indicator, and zone label for quick identification and response.
Class A Loop Supporting 128 Devices: Designed for reliability, the GST100 supports a Class A loop with up to 128 intelligent addressable devices, making it suitable for small to medium-sized facilities.

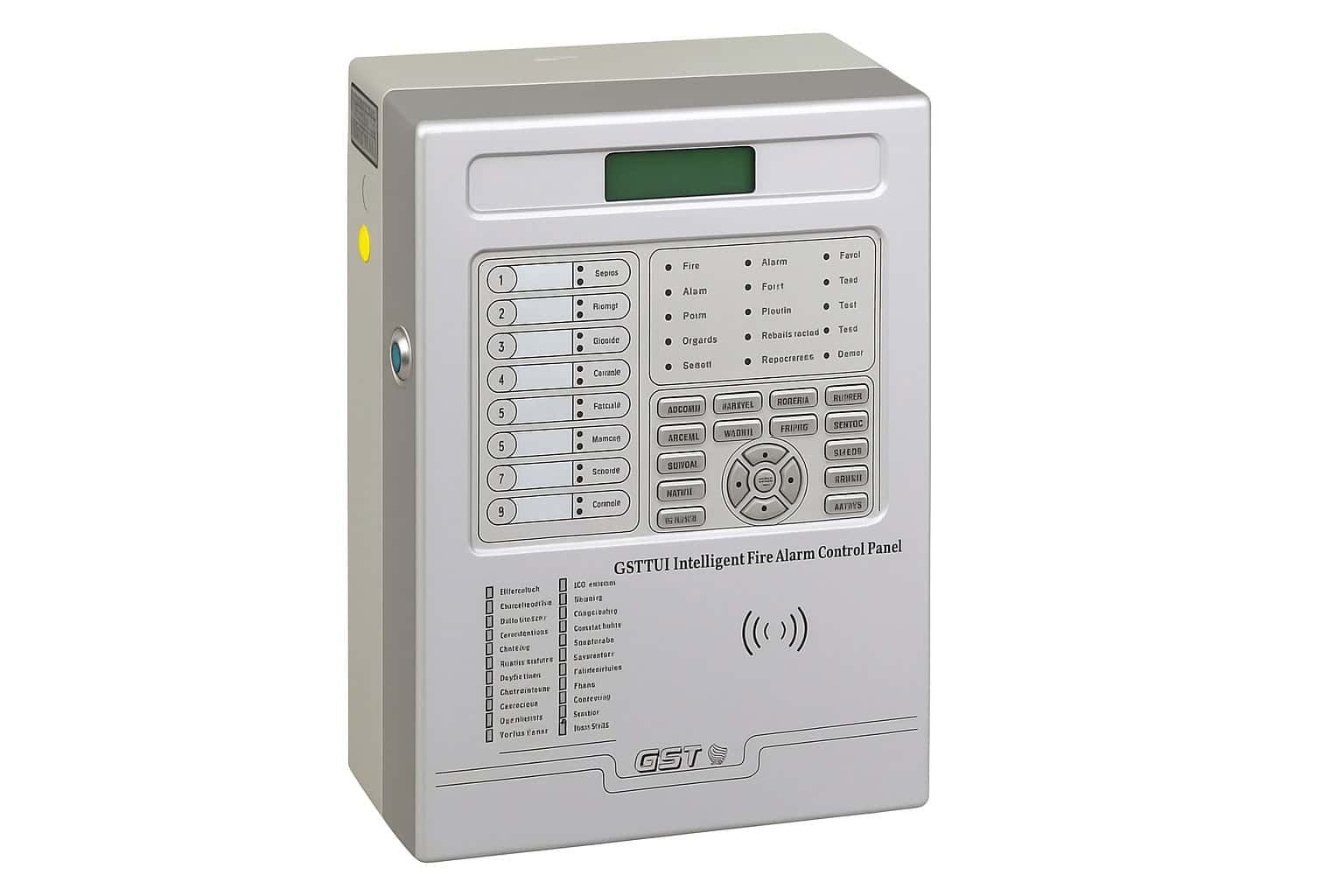

Clear LCD Display with LED Indicators: The panel features a 122×32 lattice LCD screen that works alongside LED indicators to provide real-time alerts and system status updates at a glance.
Data Protection with Non-Volatile Memory: All system configurations and logs are securely stored, even during power loss. This ensures consistent and safe operation.

Product Description:

The GST100 Series Addressable Fire Alarm Control Panel is a compact and powerful solution for the fire safety needs of small to medium-sized buildings. It is built for performance, reliability, and ease of use. This panel combines fire detection, real-time monitoring, and secure data management in one unit.

Supporting up to 8 detection zones, each with its own fire, fault, and disable indicators, the GST100 provides quick and accurate identification of fire events. The system operates on a Class A loop, allowing connection of up to 128 addressable devices. This includes smoke detectors, heat sensors, and manual call points. Its flexibility makes it ideal for offices, commercial complexes, schools, and healthcare facilities.

The panel has a 122×32 lattice LCD along with clear LED indicators. This setup offers real-time system updates and instant alarm notifications. Users can easily check the building’s safety status at a glance. The non-volatile memory ensures that all critical system data remains safe and accessible during power outages, providing consistent protection.

To reduce false alarms, the GST100 includes a delayed output function that controls when sounder circuits and alarm relays activate. It provides three relay outputs for alarm, fault, and sounder events, allowing smooth integration with external alert systems, emergency lighting, or building automation controls.

For added functionality, the panel supports an optional RS-485 interface. This feature allows connection with additional panels for centralised fire alarm management. It makes the GST100 scalable and suitable for projects that may require future expansion.

Designed with both installers and users in mind, the GST100 Series is straightforward to operate, highly reliable, and ensures a fast response when safety is crucial. By combining modern technology with a user-friendly design, it offers a dependable fire protection solution for today’s buildings.

Tech Specs & Resources

Primary AC:	230VAC, 50Hz
Operation Current:	0.2A
Loop Quantity:	One(1)
Zone Quantity:	Eight(8)
Device per loop:	128
Relay Outputs:	Alarm/Fault/Sounder
Display:	122 x32, LCD
Network:	RS485 interface
Operating Environment:	Temperature: 0℃ ～ +40℃ Relative Humidity: 95%, non condensing
Dimensions:	210mm W x 300mm H x 91mm D

GST100

Up to 8 Independent Detection Zones, Class A Loop Supporting 128 Devices, Clear LCD Display with LED Indicators

GST100 Addressable Fire Alarm Control Panel Datasheet Download

GST100 Addressable Fire Alarm Control Panel - Benefits & Usage

Efficient Zone Monitoring: Supports up to 8 detection zones, each with dedicated indicators for fire, fault, and disable status. This allows for quick and accurate event identification.
Compact Yet Scalable Design: Ideal for small to medium-sized buildings. It can connect up to 128 intelligent addressable devices, including detectors, modules, and call points.
Reduced False Alarms: Built-in delayed output functionality minimises nuisance alarms and unnecessary system activations. This improves safety without disrupting operations.
Reliable Data Retention: Equipped with non-volatile memory, the panel protects all system configurations and event logs, even during unexpected power failures.
Flexible System Integration: Features three programmable relay outputs and optional RS485 networking, making it suitable for joining building management and emergency response systems.
