Flexible Zoning. Reliable Protection. Certified Safety.

Protect what matters with the GST100A Series. These are intelligent, EN54-certified conventional fire alarm panels that offer up to 16 detection zones, remote control, flexible outputs, and easy operation. They are designed for complete fire safety control, regardless of the scale.

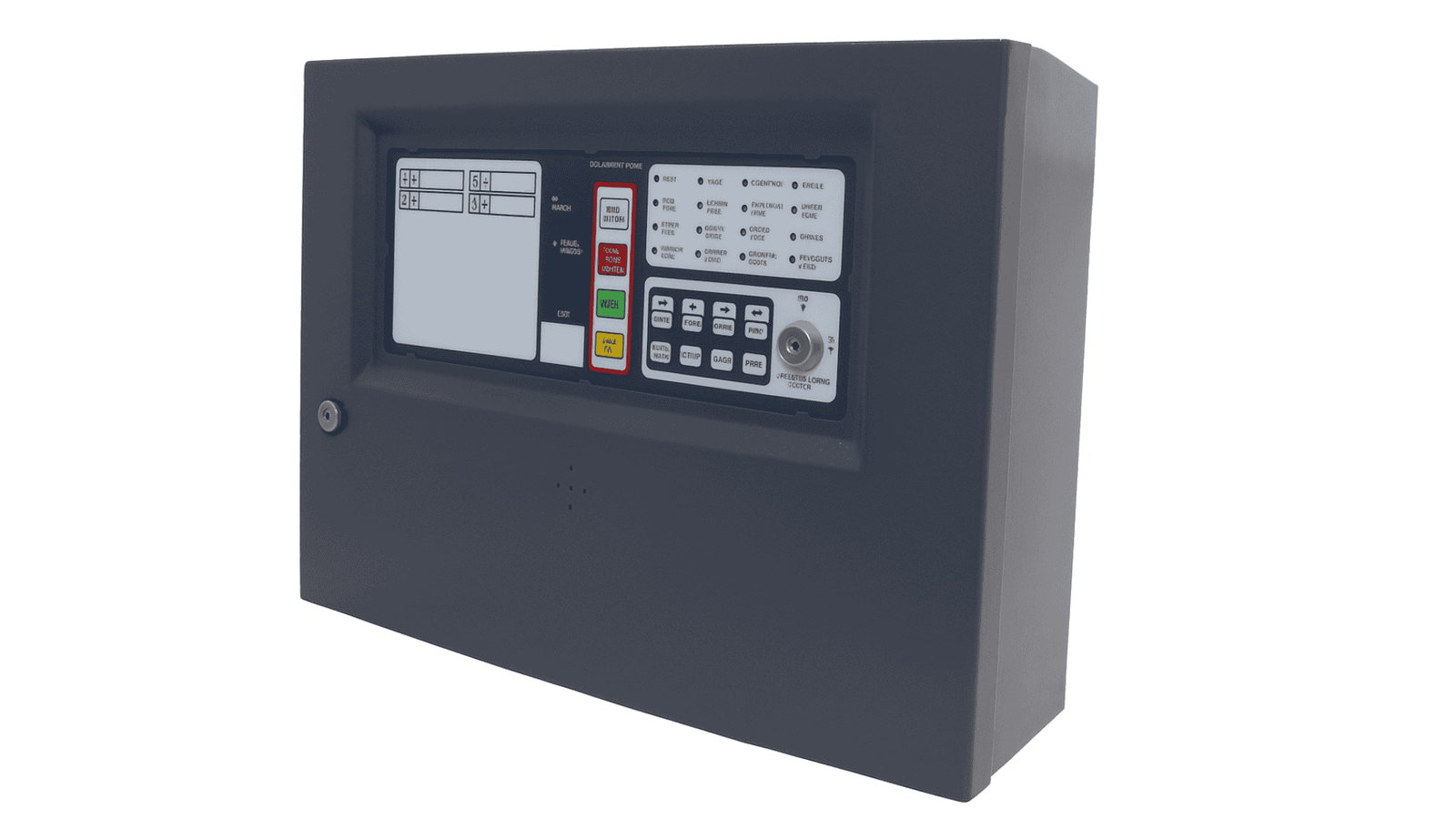

GST102A/104A/108A/116A Conventional Fire Alarm Panels

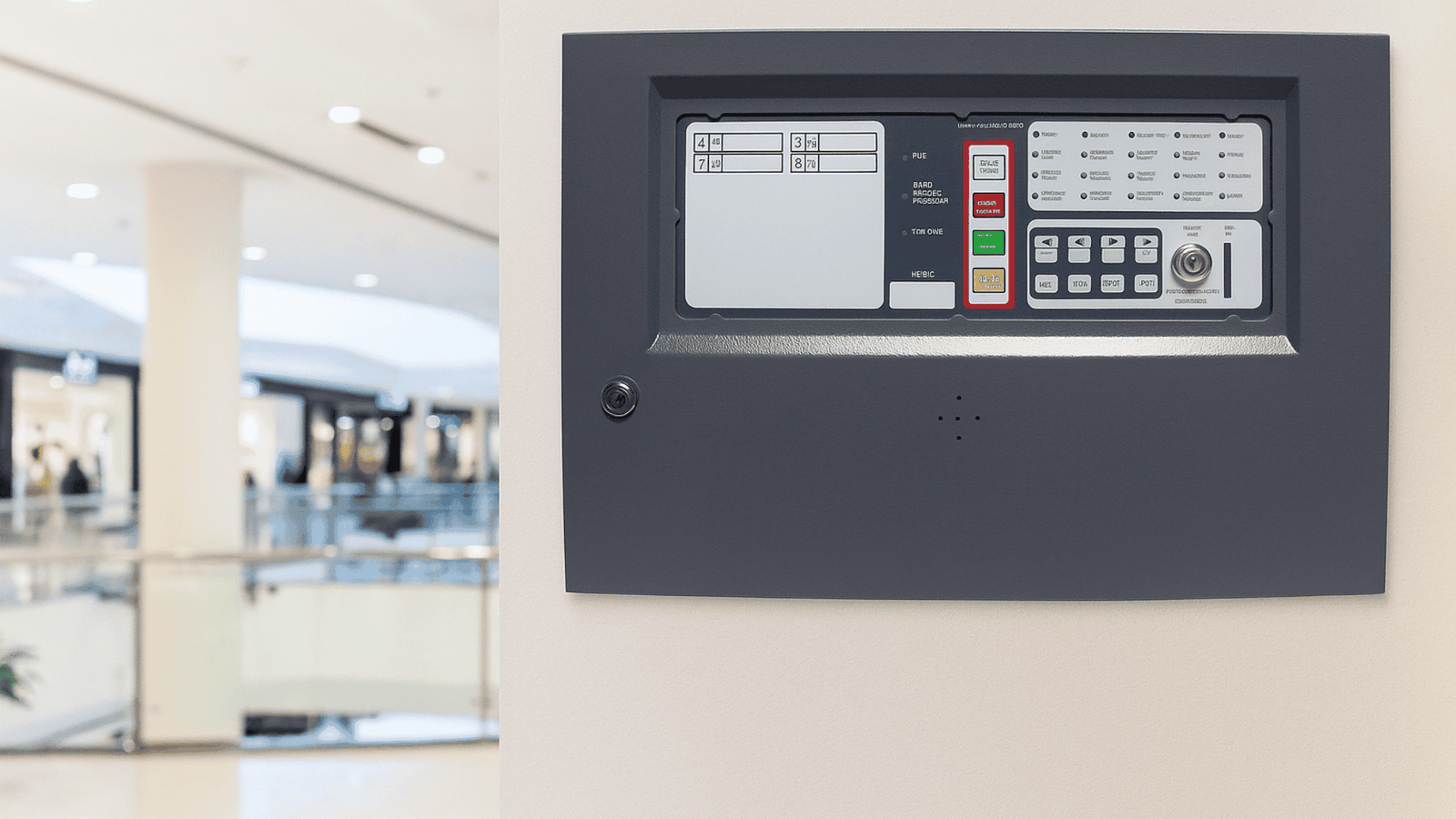

GST102A/104A/108A/116A Conventional Fire Alarm installed view

GST102A/104A/108A/116A Conventional Fire Alarm Panels – Scalable Multi-Zone Fire Safety Solution

2/4/8/16-Zone Configurations: Choose the model that fits your site’s coverage and scale requirements.
Each Zone Supports up to 32 Detectors: This allows for high-density detection and improves fire monitoring.
Selectable Alarm or Supervisory Mode per Zone: Customise zone behaviour based on fire risk or equipment monitoring.
Configurable Alarm Output (24V or N/O N/C): This is adaptable to different emergency devices and system needs.
Three Independent Sounder Outputs: The first output is configurable; the second and third are fixed at 24V.

Product Description:

The GST102A, 104A, 108A, and 116A Series (GST102A/104A/108A/116A Conventional Fire Alarm Panels) are high-performance conventional fire alarm control panels. They provide reliable, scalable, and accurate fire detection across 2, 4, 8, or 16 zones. Each zone can accommodate up to 32 fire detectors, giving the panels broad coverage for various commercial, residential, and industrial facilities. Their modular design allows for expansion as fire safety needs increase.

Built to meet the changing needs of modern fire safety systems, the GST100A Series offers flexible end-of-line options, customizable alarm and supervisory settings, and multiple sounder outputs for personalised alert management. The panels also support remote control operations and optional relay output boards. This enables easy integration with building management systems. Their design helps building managers and safety teams respond quickly and effectively to any fire incident.

The GST102A/104A/108A/116A Conventional Fire Alarm Panels are certified by LPCB and CE, and they comply with EN54 standards. They ensure regulatory compliance and operational reliability. The user-friendly interface, clear LED indicators, and organised zone layout make monitoring and maintenance easy. This reduces the chances of mistakes during critical situations.

Whether protecting a small office or a large multi-zone industrial complex, the GST102A, 104A, 108A, and 116A Series offer reliable detection, quick alerting, and effective control. Their robust construction, high-quality components, and smart alarm management features provide building owners and safety personnel with confidence and peace of mind. By combining versatility, reliability, and useful functionality, the GST100A Series offers a complete solution for modern fire protection needs, ensuring the safety of occupants, assets, and operations.

Tech Specs & Resources

Standard	EN54-2, EN54-4
Approvals	LPCB, CE
Power Supply	220V/230VAC+10%-15% 50/60Hz
Operating Environment	Temperature: 0℃ ～+40℃ Relative Humidity: 95%, non condensing
Dimension	330mm×98mm×320mm

GST102A/104A/108A/116A Conventional Fire Alarm Panels

2/4/8/16-Zone Configurations, Each Zone Supports up to 32 Detectors, Selectable Alarm or Supervisory Mode per Zone, Configurable Alarm Output (24V or N/O N/C)

GST102A/104A/108A/116A Conventional Fire Alarm Panels Datasheet Download

Benefits & Usage of GST102A/104A/108A/116A Conventional Fire Alarm Panels

Scalable fire protection with configurations ranging from 2 to 16 zones for buildings of all sizes.
It supports up to 32 detectors per zone, providing high-density coverage and efficient detection.
The system offers customizable zone settings for fire alarm and supervisory monitoring needs.
It features flexible wiring options, including both resistor and active end-of-line options.
There are multiple sounders and alarm outputs to ensure prompt and effective evacuation alerts.
Maintenance and testing are simplified with intuitive reset, silence, and test modes.
System security is improved with three-tier access control using secure key operation.
The remote control functionality enables quick responses during emergencies.
The system integrates reliably with BMS through fault, alarm, and supervisory relay outputs.
It is certified for safety and compliance with LPCB and EN54 standards.
