5 Things Every Fire Engineer Should Know Before Programming GST Panels

Fire alarm systems are at the heart of every building’s safety infrastructure, and their performance depends heavily on how accurately they are programmed and commissioned. For fire engineers, working with GST panels, renowned for their intelligent design, reliability and global compliance, requires more than just technical know-how. It calls for an understanding of system logic, loop configuration, device mapping and compliance standards.

Before programming any GST intelligent fire alarm control panel, whether it’s the GST100, GST200N, or GST-IFP4E, engineers must ensure the groundwork is right. A single programming error can compromise detection accuracy or delay evacuation signals during an emergency.

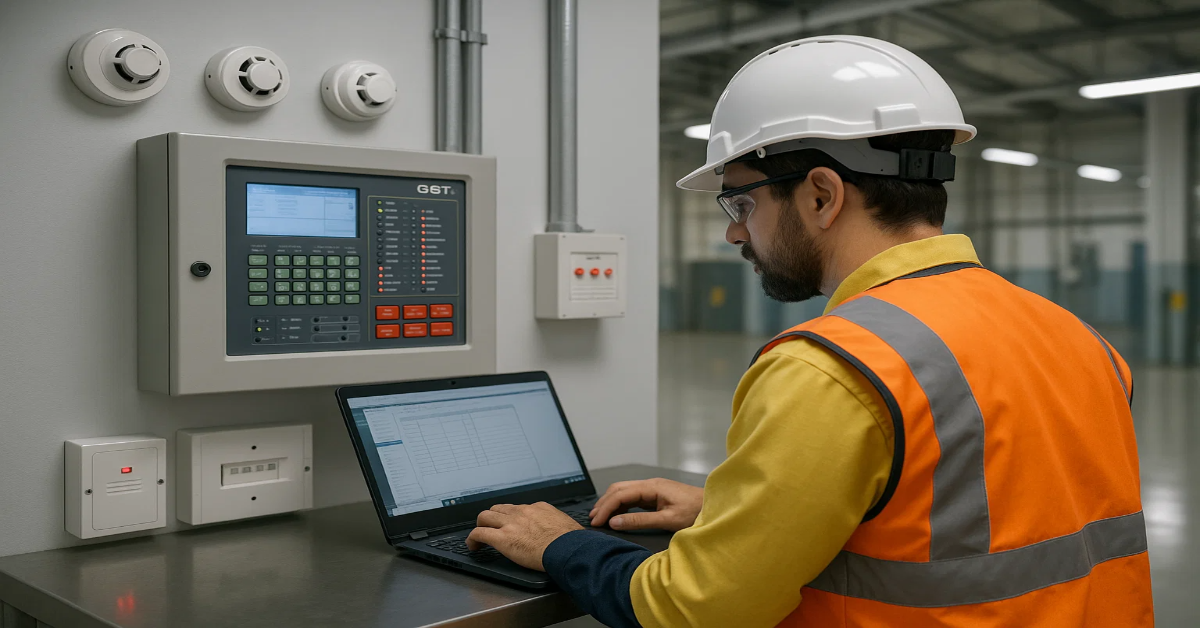

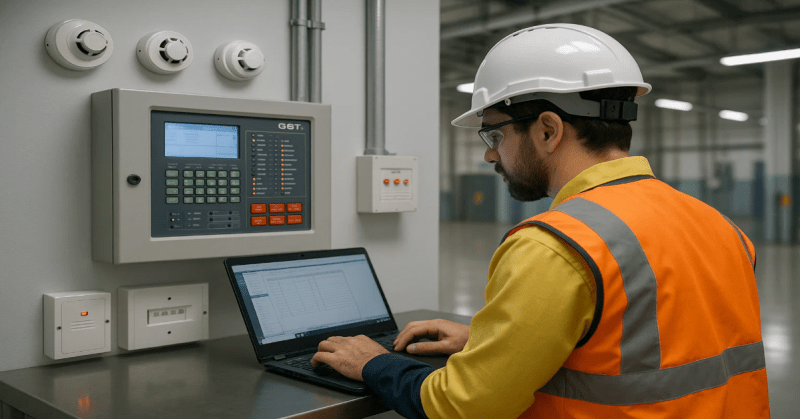

5 Things Every Fire Engineer Should Know Before Programming GST Panels — A fire engineer programming a GST intelligent fire alarm panel for an industrial safety system.

In this article, we explore five essential things every fire engineer should know before programming GST panels, helping you ensure your system runs flawlessly from day one.

1. Understand the Panel Architecture and System Topology

Before even connecting the software or uploading configurations, a fire engineer must have a complete understanding of the panel’s architecture, loop topology and system communication structure.

1.1 Types of GST Panels

GST panels are designed for different scales of buildings, from small facilities to complex high-rises:

GST100 – Suitable for small commercial or SME applications.
GST200N – Ideal for medium-sized industrial environments and multi-zone systems.
GST-IFP4E – Designed for large or smart buildings with multiple loops and advanced networking capabilities.

Each panel differs in loop capacity, network expandability and communication modules and understanding these parameters is the first step in programming effectively.

1.2 Loop Topology and Device Mapping

GST uses a two-wire loop-based architecture where detectors, call points and modules are connected in a series. Each device carries a unique address ID.
Before programming:

Ensure loop wiring is completed and polarity is correct.
Verify the number of devices per loop does not exceed the panel’s specified limit.
Create a logical map of device addresses and physical locations to maintain traceability.

This preparation helps prevent issues like duplicate addresses, communication errors or false alarms.

2. Learn How the Addressing and Zone Logic Works

One of the most critical aspects of programming GST panels is mastering device addressing and zone configuration. Without proper logic, the system can report alarms inaccurately or delay response.

2.1 Manual vs. Auto Addressing

GST detectors and modules support both:

Manual addressing: Using a handheld programmer (e.g., GST handheld device), you assign an address manually to each device.
Auto addressing: The panel or commissioning tool automatically assigns addresses based on device sequence.

Best Practice: Always maintain a record (Excel or printed layout) of address assignments and corresponding device locations. This documentation becomes invaluable for future maintenance and troubleshooting.

2.2 Zone Logic and Programming

Fire engineers must group devices into zones, logical segments of the building. Each zone represents an area like a floor, department or production line.
When programming:

Assign devices in a way that aligns with fire evacuation routes.
Ensure manual call points and sounders are linked logically to the same zone.
Program delay times for sounders as per local fire regulations.

A well-structured zone plan not only simplifies alarm interpretation but also supports efficient fire management during emergencies.

3. Familiarize Yourself with GST Programming Software

GST panels come with dedicated configuration tools designed to make programming simple, structured and standardized. Understanding how to use these tools effectively is essential.

3.1 GST Programming Tool Overview

The GST Programming Tool allows you to:

Upload and download configurations between PC and panel.
Set device types, addresses and zone assignments.
Define cause-and-effect logic (e.g., detector activates → sounder triggers → relay output).
Backup system data for future reference.

Pro Tip: Always use the latest version of the GST programming tool and corresponding USB drivers to ensure compatibility with your operating system.

3.2 Communication and Data Backup

When connecting your PC to the panel:

Use the recommended serial or USB interface.
Check COM port settings before establishing connection.
Save configuration files in organized folders with project names and dates.

Maintaining version control of configuration files helps prevent accidental overwrites and supports quick restoration in case of system resets or panel replacements.

4. Follow Compliance and Testing Protocols Before Final Programming

Fire alarm systems are regulated by global and local standards such as EN 54, IS 2189 and NFPA 72. Before finalizing programming, ensure that every setup step aligns with these standards.

4.1 Compliance Checklist

Device spacing: Confirm detector spacing and coverage as per standards.
Alarm verification: Set verification time to avoid false alarms due to transient smoke or dust.
Sounder output levels: Ensure audibility meets required decibel levels across all occupied zones.
Power supply: Verify both primary and backup power sources are functional and correctly sized.

4.2 Conduct Pre-Programming Tests

Before final upload:

Perform a continuity test on all loops.
Check for earth faults or short circuits.
Test a few devices manually to confirm communication with the panel.

These pre-programming checks ensure that once configurations are loaded, the system performs optimally without hidden faults.

5. Document Everything and Plan for Future Maintenance

Programming a GST fire panel isn’t just about setting up the system today, it’s also about ensuring long-term maintainability. Documentation and maintenance planning are critical to sustaining system integrity.

5.1 Maintain a Detailed Programming Log

Your documentation should include:

Device address and zone mapping.
Configuration logic and cause-effect programming.
Firmware and software version numbers.
Backup copies of configuration files.

Well-maintained records make it easier for future engineers or service teams to modify or expand the system without confusion.

5.2 Schedule Routine Reprogramming and Testing

Fire safety regulations often require periodic inspection and testing. Over time, building layouts change and devices may be added or replaced.
As part of good engineering practice:

Review panel configurations at least once a year.
Test alarm sequences and notification logic quarterly.
Keep firmware and software updated for security and stability.

Regular updates ensure the system remains compliant and reliable throughout its service life.

Stay Updated with GST’s Latest Panel Models and Firmware

GST continuously evolves its fire alarm product line with new features and firmware updates to enhance performance, EMI resistance and network stability. Engineers should always stay informed about:

New firmware releases (to fix bugs or add features).
Updated software tools (for smoother programming).
Model compatibility notices (especially when integrating older loops with new panels).

Following GST’s technical bulletins or training sessions can give engineers an edge in system optimization and fault prevention.

Precision Programming Saves Lives

Programming a GST fire alarm panel isn’t just a technical step, it’s a critical safety responsibility. Every setting, from device addressing to cause-and-effect logic, plays a direct role in how efficiently a fire is detected and how quickly people can be evacuated.

By mastering these five essential principles, understanding panel architecture, managing address and zone logic, using programming tools correctly, following compliance standards and maintaining thorough documentation, fire engineers can ensure every GST system operates at its highest reliability.

In the end, a well-programmed GST panel is not just a control device, it’s the backbone of a building’s life safety ecosystem.
And the engineer behind it plays the most crucial role in making that system truly dependable.
