Why Two Identical Fire Alarm Loops Can Behave Differently After Installation

Introduction: When Identical Designs Produce Different Results

Two addressable fire alarm loops in a warehouse extension share the same panel model, the same nominal cable specification and similar device counts. After installation, Loop 1 commissions cleanly. Loop 2 reports intermittent communication faults, devices that drop out and return, and trouble indications that never appear while an engineer is standing at the panel.

The instinctive conclusion is that the panel or a batch of detectors is defective. That assumption can lead to swapped equipment, repeated site visits and no change in behaviour, because the cause often sits in the installation rather than in the product.

This article asks one question: what physical, electrical, environmental and configuration differences should engineers investigate before replacing equipment? The same symptom can have several causes, so every diagnostic step must follow the specific manufacturer’s documentation for the installed panel and devices.

Why Identical Loop Designs Do Not Guarantee Identical Performance

Two identical fire alarm loops can behave differently because a drawing records design intent, while the installed loop reflects real cable routes, terminations, workmanship, environment and configuration. Matching drawings and device schedules say little about what happened on site.

An addressable fire alarm loop is a signalling circuit that runs from a fire alarm control panel through a chain of addressable devices. The panel polls each device by its address, so the loop depends on both its electrical condition and its configuration.

Two loops that look the same on paper may differ in:

• installed cable length and route;
• conductor resistance and cable capacitance;
• joints and intermediate connection points;
• exact device models, accessories and isolators;
• topology, including any branches (where the manufacturer permits them);
• workmanship and later modifications;
• exposure to heat, moisture, dust and electrical noise;
• panel configuration and commissioning records.

Not every difference causes a fault. The task is to find which differences matter for the product in use. Even the EN 54-13 standard acknowledges that assessing compatibility and connectability in every possible configuration is not practical, and it works within defined operational and environmental conditions.

Cable Routing and Electrical Characteristics

Yes, cable routing can affect an addressable fire alarm loop. The route determines total length, the number of joints, proximity to noise sources and exposure to mechanical damage. Each of these can alter the electrical conditions the panel and devices rely on.

Compare the installed loop against the approved design on these points:

• Actual route and total length: Site changes often lengthen a loop beyond the drawn route. Longer cable adds resistance and capacitance.
• Conductor size and cable type: Verify what was installed, not what was specified.
• Joints and intermediate connections: Each joint adds a point of possible high resistance or intermittent contact.
• Separation from power cables: Cables routed alongside motors, variable-speed drives or heavy power feeders may be exposed to electrical interference. Required separation depends on the cable type, local code and manufacturer guidance.
• Physical condition: Crushed, over-tightened or abraded cable can degrade insulation or damage conductors.

Limits vary by panel, loop architecture and cable type. For example, one GST200N datasheet lists loop capacities of 235 devices on the first loop and 242 on the second, and a GST loop card datasheet lists 242 addressable devices per loop. Do not carry such figures to another model. Take cable length, resistance and capacitance limits only from the documentation for the exact panel, loop card and devices installed.

Field Connections: Small Installation Differences, Different Results

Yes, loose or degraded connections can cause intermittent fire alarm faults. A connection that makes contact most of the time can pass a brief inspection and still fail under vibration, temperature change or moisture. Faults that appear and vanish are common signatures of this kind of problem, though they are not proof of it.

Areas to examine:

• loose, poorly secured or over-tightened terminals;
• incorrect conductor stripping, or strands left outside the terminal;
• poorly made or unrecorded joints;
• damaged conductors at entry points and bends;
• reversed polarity, where the device or module is polarity-sensitive;
• short circuits, earth faults or unintended connections between conductors and metalwork;
• inadequate enclosure protection, moisture ingress and corrosion;
• connections altered during later modifications.

Distinguish a confirmed fault (reproduced and measured, or visibly damaged) from a suspected connection issue (consistent with the symptoms but unproven); record which one you have. A suspicion supports a targeted inspection, not a replacement order.

Inspection should use qualified personnel, manufacturer-approved procedures and site permits. Start with accessible terminations and enclosures, then work toward less accessible points, and photograph and label what you find.

Device Population, Compatibility, and Loop Loading

Adding more devices does not always cause loop communication problems. A loop operating within the manufacturer’s limits can carry its full approved population. Problems arise when the population, its current demand, the cable or the topology fall outside what the panel supports.

Loop loading means the combined electrical demand placed on the loop by its devices and cable, measured against the limits the manufacturer defines. Device count alone does not describe it.

Two loops with the same device count can still differ because of:

• Different device models, including modules, sounders and call points with different current requirements;
• Accessories fitted to some devices but not others;
• The number and placement of loop isolators, which must be approved for the system;
• Branches or topology the panel may not allow;
• Devices installed that differ from the approved design.

Addressable devices and panels use manufacturer-defined communication and electrical arrangements, and protocols are not interchangeable across brands. EN 54-13 exists precisely to assess whether components are compatible and connectable. When discussing GST addressable detectors, confirm model compatibility with the installed GST fire alarm system in the official documentation.

Installation Quality and Environmental Conditions

Site conditions can act in two different ways, and separating them helps diagnosis:

• Conditions that can damage equipment or cable: High temperature, condensation, corrosion, dust build-up, mechanical impact and sustained vibration.
• Conditions that may interfere with operation: Electromagnetic interference from motors, drives and heavy switching loads, particularly where loop cable runs close to them.

No single factor always produces communication faults. A humid plant room may produce earth-fault indications, while a cable run beside a drive may show disturbances that line up with equipment starts. Look for correlation between event times and site activity.

Verify equipment ratings, enclosure protection and permitted operating conditions against manufacturer documentation. A device rated for a clean office is not automatically suitable for a dusty, hot or washed-down industrial area.

Configuration and Commissioning Differences

A physically sound loop can still behave badly because of configuration. Check for:

• Duplicate or incorrect device addresses;
• Wrong device-type settings in the panel;
• Device-to-location mapping errors;
• Incompatible devices, or firmware compatibility requirements where applicable;
• Incorrect assumptions about topology;
• Panel configuration that differs between the two loops;
• Incomplete commissioning;
• Outdated or inaccurate as-built documentation.

The panel’s role matters here. A control panel such as an addressable fire alarm panel identifies and reports device status and loop faults, but the exact indications and codes depend on the model. In contrast, a conventional fire alarm panel monitors zones rather than individual addresses, so its wiring and diagnostic approach differ and should not be mixed with addressable practice. Likewise, conventional detectors do not carry unique addresses.

Before making product-specific statements, verify which configuration features the specific GST panel model supports.

Troubleshooting Before Blaming the Panel or Devices

Before replacing a fire alarm panel, engineers should record the symptom, review event history, compare the installations, verify cable compliance, inspect connections, check device compatibility and run approved tests. The workflow below puts evidence ahead of assumption.

Step 1: Record the actual symptom. Identify whether it is a missing device, intermittent communication, short-circuit indication, earth fault, open circuit, repeated trouble or commissioning failure. Different symptoms point to different paths, so a vague “loop fault” note wastes time.

Step 2: Review the panel’s event and fault history. Note the exact indication, affected devices, times and recurrence pattern. Interpret codes only with the manufacturer’s documentation. Patterns such as “always after 14:00” or “always the same address” narrow the search.

Step 3: Compare the two installations. Set approved drawings, installed routes, device schedules, connection points and configuration records side by side. Differences, not similarities, are the leads.

Step 4: Verify cable compliance. Check type, conductor size, installed length, routing and joints against the approved design and manufacturer limits. This tests whether the loop sits within its electrical envelope.

Step 5: Inspect field connections. Have qualified personnel examine accessible terminations, joints, enclosures and signs of damage using approved procedures. Intermittent contact is physical, so visual and mechanical checks come before software changes.

Step 6: Verify device compatibility and population. Compare installed models, addresses, modules, isolators and total population with the approved configuration.

Step 7: Perform manufacturer-approved electrical tests. Select continuity, resistance, insulation or other measurements according to the equipment and approved procedure. Never apply a test voltage that could damage connected electronic devices; disconnect or isolate devices as the manufacturer directs.

Step 8: Isolate the suspected cause methodically. Where permitted, determine whether the fault follows a cable section, connection, device or configuration change. Change one variable at a time and document each change. Otherwise, you cannot say what fixed it.

Step 9: Verify the correction. Complete functional testing, commissioning checks, documentation updates and restoration before declaring the loop operational.

Safety note: Testing and modifications must follow the manufacturer’s instructions and site procedures. Protect the building and its occupants whenever any part of the fire alarm system is isolated or impaired, and never leave a life-safety system in an undocumented or unapproved disabled state.

How can engineers tell wiring faults from device or configuration faults? Wiring faults tend to follow a cable section, termination or environmental event. Device faults follow a specific device when it is moved or substituted. Configuration faults follow addresses, device types or panel settings and persist even when wiring tests are clean. Use the panel’s event data to decide which pattern fits, then confirm by controlled testing.

A Comparison Table for Loop Troubleshooting

The causes below are possibilities to investigate, not diagnoses.

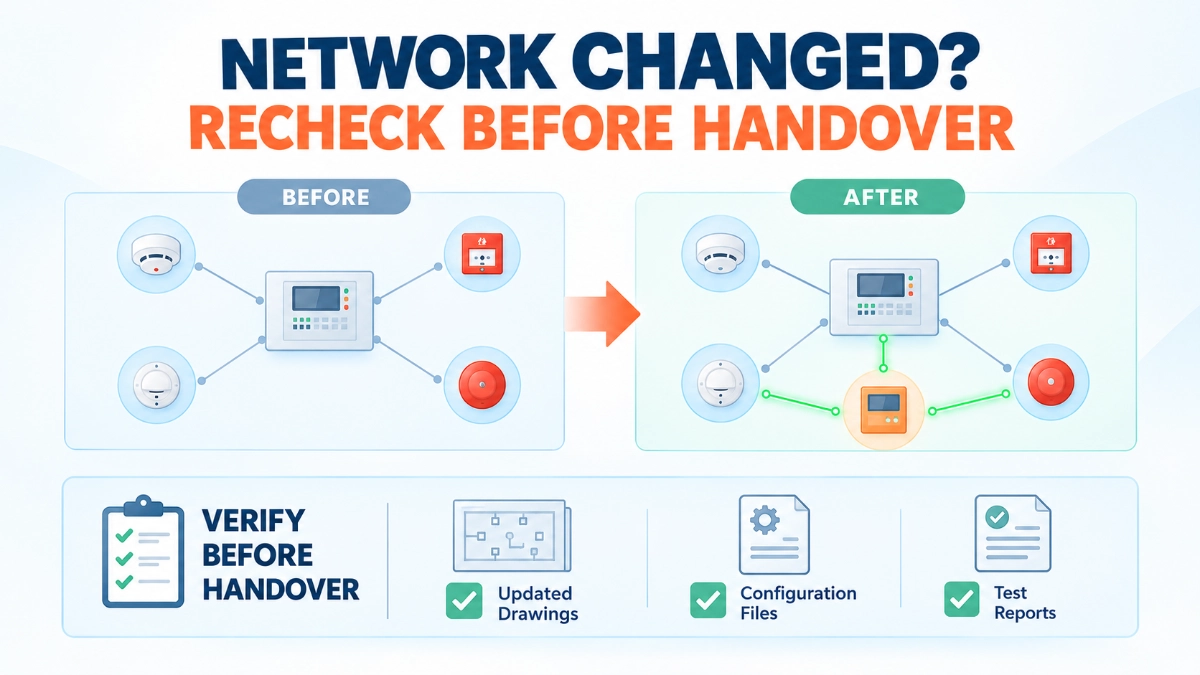

What Engineers Should Document After Troubleshooting

Good records stop the same fault from returning. Keep:

• Final loop drawings and actual cable routes;
• Device lists and addresses;
• Test records and fault and event logs;
• Approved configuration records;
• Identified root causes and corrective actions;
• Commissioning and restoration records.

NFPA 72 covers the installation, performance, inspection, testing and maintenance of fire alarm systems, and its documentation chapter addresses design, installation, completion and ITM records where required by the authority having jurisdiction. Check which edition and local requirements apply to your project.

When only part of the picture is known, a distributor’s documentation resources can help locate the correct manuals. Innxeon Technologies Pvt Ltd is a PAN-India distributor of GST (Gulf Security Technology) fire alarm systems, not the manufacturer. The practical step is to review the documentation for the specific GST panel and compatible devices installed on the project.

Conclusion: Diagnose the Installation Before Replacing Equipment

Identical specifications do not guarantee identical field conditions. Actual loop behaviour comes from:

cable characteristics + connections + device population + environmental conditions + configuration + installation quality.

Effective fire alarm loop troubleshooting compares two real installations, tests one variable at a time and records the result. That approach is more reliable than replacing panels or detectors on assumption, and it protects commissioning schedules and life-safety availability.
